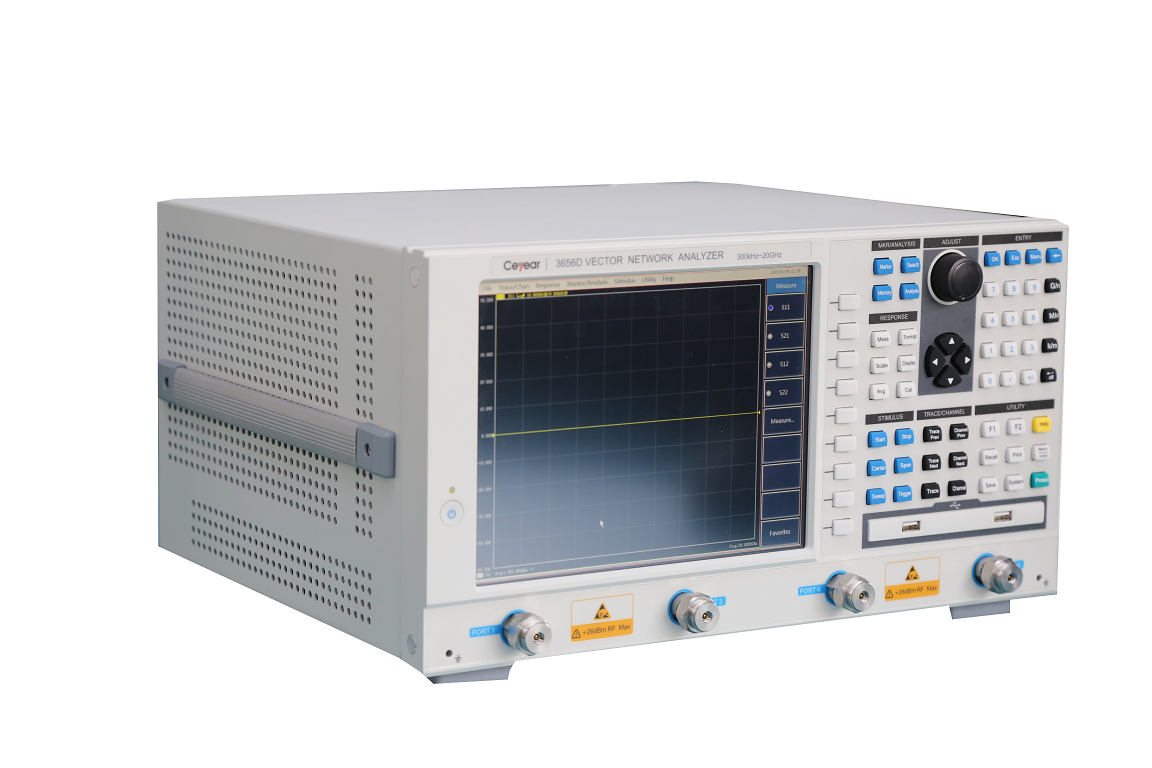

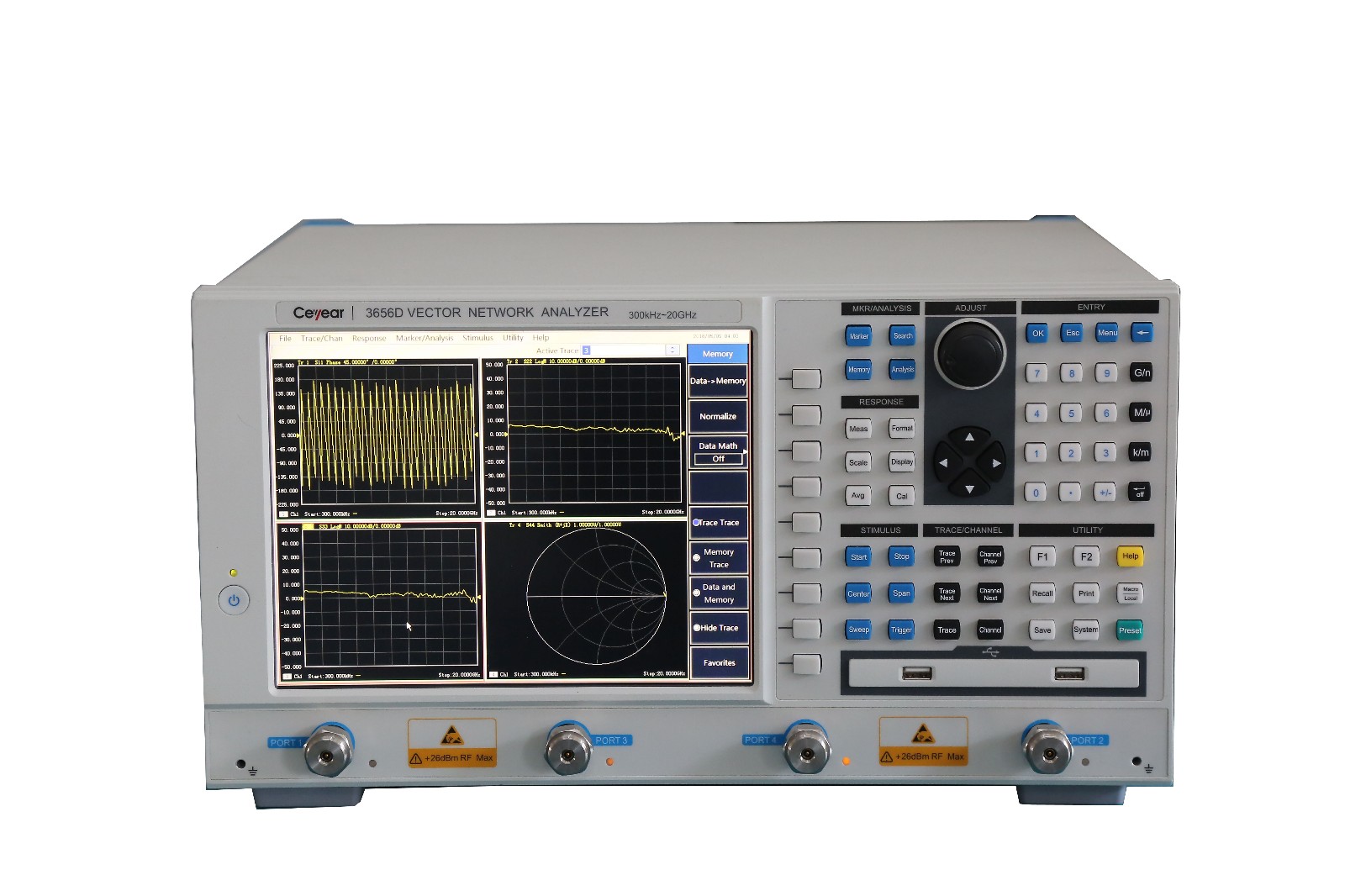

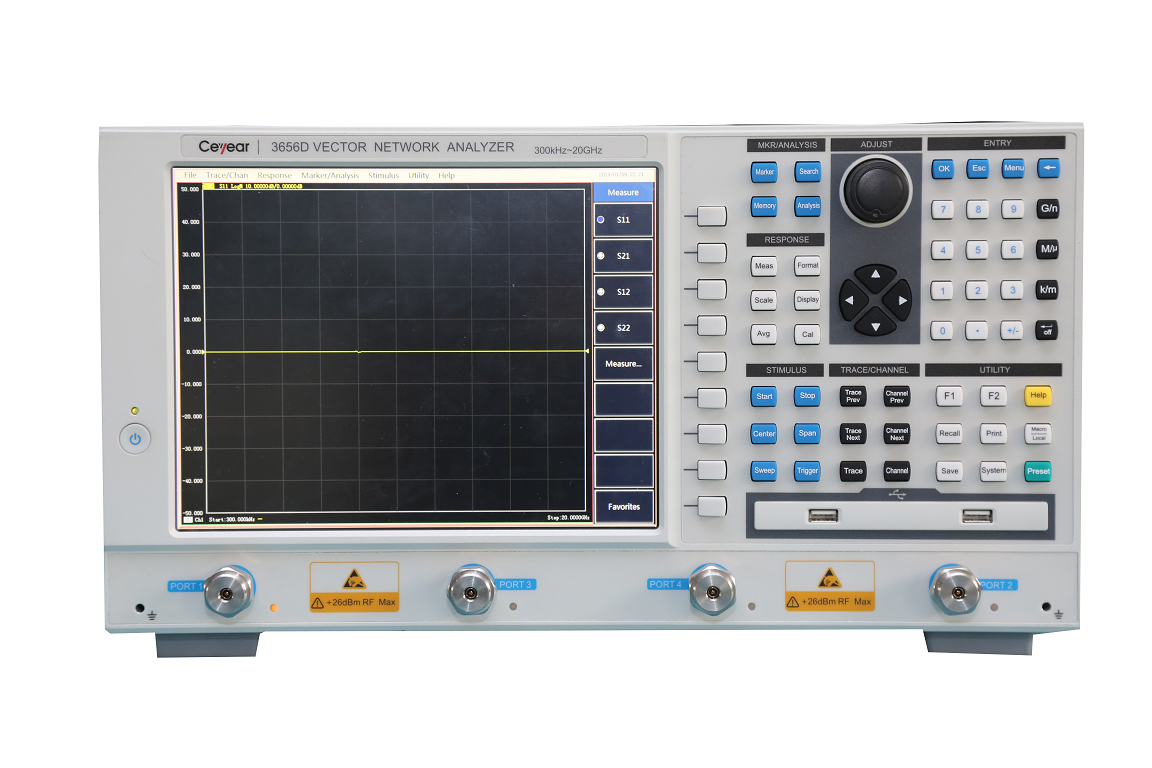

3656A/B/D Vector Network Analyzer

发布时间:2019-06-03人气:295

3656A/B/D Vector Network Analyzer

    (100kHz~3GHz/100kHz~8.5GHz/300kHz~20GHz)

PRODUCT OVERVIEW

3656A/B/D vector network analyzer is applicable to fields of radio communications, cable TV, teaching and automotive electronics etc. It can be used for performance measurement of RF components such as filter, amplifier, antenna, cable, and cable television sub connectors etc. It adopts Windows operating system, and has functions of error calibration, time domain and fixture simulator; It supports multiple display formats such as logarithmic amplitude, linear amplitude, standing wave, phase, group delay, Smith chart and polar coordinates etc.; It provides multiple calibration types including frequency response, single port, response isolation, enhanced response and full dual-port, rapid SOLT calibration and electrical calibration; It is capable of multi-channel and multi-window display; It is designed with USB interface, LAN interface, GPIB interface and VGA interface. It can rapidly and accurately measure the amplitude, phase and group delay characteristics of the DUT S-parameter, with efficient and powerful error correction capability.




FUNCTIONS & FEATURES

Main Characteristics

l  Dynamic range up to 125dB; accurate measurement on high rejection ratio devices

l  75Ω test port impedance option of 3656A for cable TV components measurement

l  3656A/B/D provide 4-port option which can accomplish all 16 S parameters test of 4-port net by a single connection

Note: For 4-port option of 3656A/B, it’s external device 2813A

l  Ultra-low trace noise which provide higher test accuracy

l  Up to 64 independent measuring channels that can implement complex testing schemes rapidly

l  Powerful data analysis functions, such as ripple test, bandwidth test and limit test, convenient for user to judge the conformity and improves the test efficiency

l  Time domain analysis function as the standard configuration

l  Fixture simulator can simulate various R&D situations to rapidly get the real-time test results

l  LAN and GPIB interface, capable of remote control and system interconnection, 4 USB interfaces

Large dynamic range

With dynamic range up to 125dB (IFBW=10Hz), 3656A/B/D is capable of accurate measurement on devices with high rejection ratio.


Ultra -low trace noise

Trace noise of 3656A/B/D is ultra-low, which minimizes measurement error.




Time-domain analysis function

The analyzer can conduct time-domain measurement on DUT via time-domain software so as to comprehensively test the performance indicators of DUT, such as cable fault location and length measurement.




Powerful data analysis function

It has analysis functions such as limit test, ripple test and bandwidth test, filter automatic statistics etc., which can clearly test the loss, ripple and rejection and help for conduct hopping filter debugging.





TYPICAL APPLICATIONS

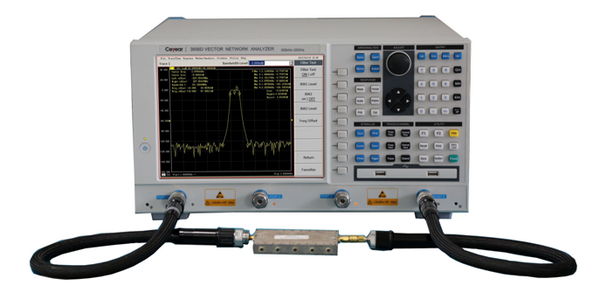

Production test of mobile communication products

The frequency range of 3656A/B/D vector network analyzer can meet the demand of production test on mobile communication products. It has advantages of high sweep speed, wide dynamic range and compact size which is very suitable for the test of mass production in factories. 3656A/B/D can be applied to the test of RF components such as filter, amplifier, antenna and cables. The 75Ω test assembly of 3656A is also available for performance test of CATV devices.





Test of passive multi-port device and balanced device


3656A/B/D VNA provide 4-port test function . It can test the whole 16 S parameters of 4-port network via one single connection, thus is very suitable for the mass production test of multi-port devices in factories. It has balanced parameter test function: after the full 3-port or full 4-port calibration using 3 or 4 test ports, choose the corresponding operation mode (single port-balanced network, single port-single port-balanced network, balanced-balanced network), then you can gain the mixed S-parameters of balanced devices.

Notes: For 4-port option of 3656A/B, it’s external device 2813A


3656A/B Technical Specifications

Parameters

3656A

3656B

Frequency range

100kHz ~ 3GHz

100kHz ~ 8.5GHz

Frequency resolution

1Hz

1Hz

Frequency   accuracy

±5×10-6(23℃±3℃)

±5×10-6(23℃±3℃)

Output power   setting range

-45dBm~+10dBm

-55dBm~+10dBm





System dynamic   range





(10Hz) (3kHz)

100kHz~1MHz    90dB        60dB

1MHz~10MHz    110 dB       80 dB

10MHz~3GHz    125dB        95dB

(10Hz) (3kHz)

100kHz~20MHz   110dB        80dB

20MHz~3GHz     125 dB        95 dB

3GHz~6GHz      123dB      93dB

6GHz~8.5GHz     118dB         88dB

Reflection track

100kHz~10MHz    ±0.030dB

10MHz~3GHz     ±0.020dB

100kHz~3GHz       ±0.030dB

3GHz~6GHz         ±0.040dB

6GHz~8.5GHz       ±0.050dB

Transmission   track

100kHz~10MHz   ±0.030dB

10MHz~3GHz     ±0.020dB

100kHz~3GHz       ±0.030dB

3GHz~6GHz         ±0.040dB

6GHz~8.5GHz       ±0.050dB

Effective   directivity

100kHz~10MHz    49 dB

10MHz~3GHz      46 dB

100kHz~10MHz    49dB (option H01)

10MHz~3GHz      46dB (option H01)

100kHz~3GHz       46dB

3GHz~6GHz         40dB

6GHz~8.5GHz       38dB

Effective source   match

100kHz~10MHz    44dB

10MHz~3GHz      40dB

100kHz~10MHz    43dB (option H01)

10MHz~3GHz      21dB (option H01)

100kHz~3GHz       36dB

3GHz~6GHz         35dB

6GHz~8.5GHz       33dB



Effective load   match

100kHz~10MHz    49 dB

10MHz~3GHz      46 dB

100kHz~10MHz    48dB (option H01)

10MHz~3GHz      41dB (option H01)

100kHz~3GHz        44dB

3GHz~6GHz         40dB

6GHz~8.5GHz        36dB



Test points

1 to 16001

IF bandwidth

Min. 1Hz;Max. 5MHz,in 1,2,3,5,7 step

Port   connector type

Type-N (female)   50 ohm system impedance

Type-N (female)   75 ohm system impedance(3656-H01)

Number of test   ports

2

Number of test   receivers

4

Reference level   amplitude setting

Setting   range: ±500dB

Setting   resolution: 0.001dB

Reference phase   setting

Setting range:   ±500°

Setting   resolution: 0.01°

Time-base  reference output

Output   frequency: 10MHz

Output level:   +10dBm±4dB

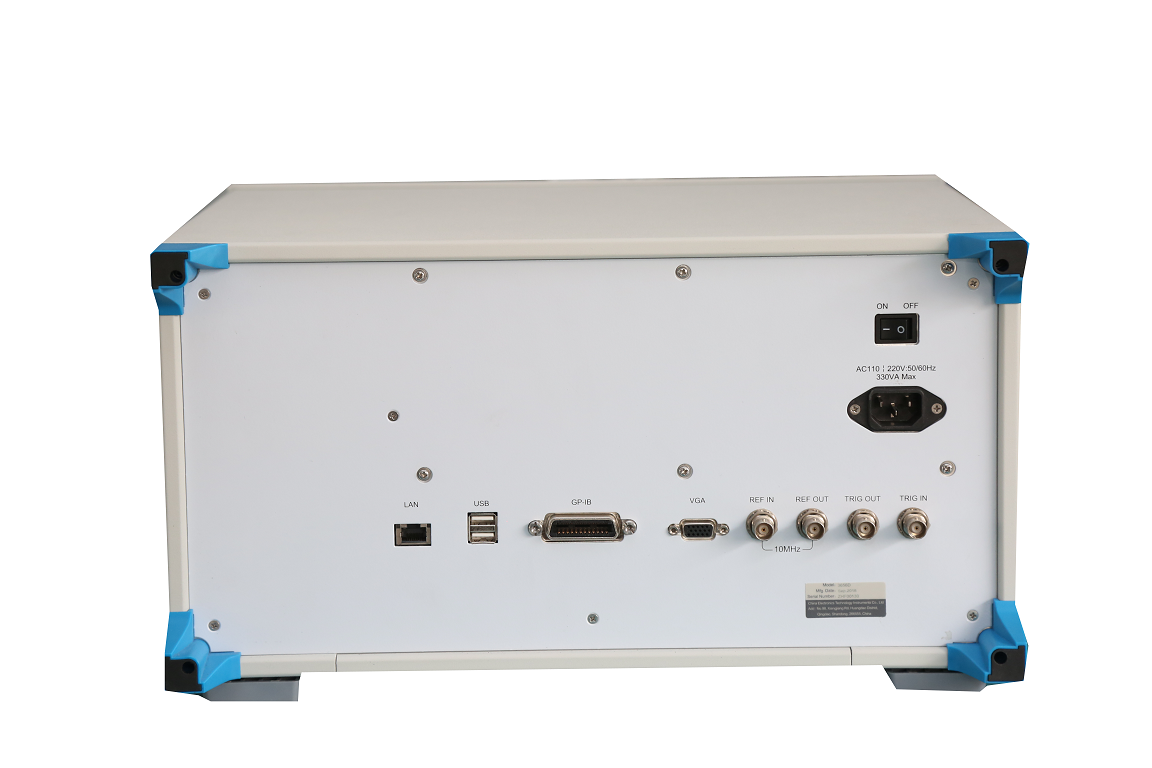

Digital interface

GPIB, USB,   Ethernet interface and VGA display interface

Operation system

Windows  XP

Display

10.4-inch high brightness LCD

Test domain

Frequency domain, Time domain

Dimensions

435×233×348 (W×H×D) (including foot pad,   foot, lateral stripping, input and output port)

Power   consumption

150W

Power supply

50Hz single phase 220V or 50Hz/60Hz single phase 110V AC

Weight

16kg

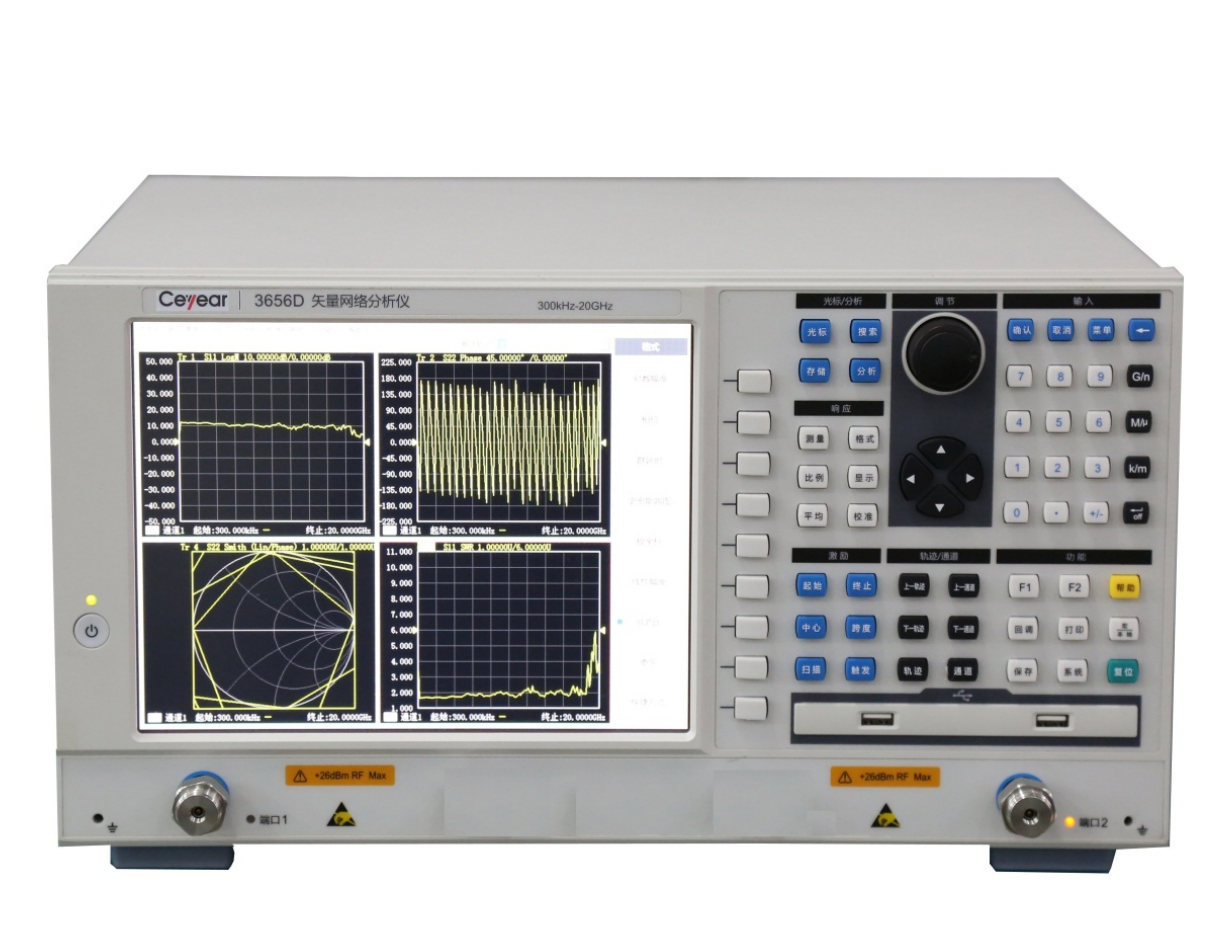

3656D Technical Specifications:

Parameters

3656D

Frequency range

300kHz ~ 20GHz

Frequency   resolution

1Hz

Frequency   accuracy

±1×10-6(23℃±3℃)





System dynamic   range

IF bandwidth:10Hz

Frequency range

2-port

4-port

300kHz~100MHz

95dB

90 dB

100MHz~1GHz

110dB

100 dB

1GHz~6GHz

120dB

115 dB

6GHz~8GHz

117dB

110 dB

8GHz~10GHz

115dB

105 dB

10GHz~15GHz

110dB

100 dB

15GHz~20GHz

100dB

90 dB

Reflection track

300kHz~10MHz   ±0.030dB

10MHz~3GHz    ±0.040dB

3GHz~20GHz     ±0.050dB

Transmission   track

300kHz~10MHz   ±0.030dB

10MHz~3GHz    ±0.040dB

3GHz~6GHz      ±0.100dB

6GHz~20GHz     ±0.150dB

Effective   directivity

300kHz~10MHz   46dB

10MHz~3GHz     42dB

3GHz~6GHz      38dB

6GHz~20GHz     36dB

Effective source   match

300kHz~10MHz   37dB

10MHz~3GHz     37dB

3GHz~6GHz      31dB

6GHz~20GHz     28dB

Effective load   match

300kHz~10MHz   44dB

10MHz~3GHz     42dB

3GHz~6GHz      38dB

6GHz~20GHz     36dB

Test points

1 to 16001

IF bandwidth

Min. 1Hz;Max. 5MHz,in 1,2,3,5,7 step

Port connector   type

3.5mm (male) 50   ohm system impedance

Number of test   ports

2/4

Number of test   receivers

2/4

Reference level   amplitude setting

Setting range:±500dB

Setting   resolution:0.001dB

Reference phase   setting

Setting range:±500°

Setting   resolution:0.01°

Time-base   reference output

Output   frequency:10MHz    Output level:+10dBm±4dB

Digital   interface

GPIB, USB,   Ethernet interface and VGA display interface

Operation system

Windows  XP

Display

10.4-inch high brightness LCD

Test domain

Frequency domain, Time domain

Dimensions

436×236.5×410 (W×H×D) (including foot   pad, foot, lateral stripping, input and output port)

Power   consumption

150W

Power supply

50Hz single phase 220V or 50Hz/60Hz single phase 110V AC

Weight

18kg

Main Unit

No.NameDescription
3656ANetwork Analyzer100kHz~3GHz
3656BNetwork Analyzer100kHz~8.5GHz
3656DNetwork Analyzer300kHz~20GHz

Hardware Options

No.NameDescription
3656A-00175ohm Port Impedance System
3656A-002Type N Test cable(GORE-OSZKUZKU0240)Dual Male
3656A-003Type N Test cable(GORE-OSZKUZKV0240)60cm
3656A-004English OptionsFemale-Male
3656A-00520205 Type N Calibration Kit60cm
3656A-00620204 Type N 75ohm Calibration KitKey
3656A-007Economical Stable Phase Test cable CETI-N/J.SMA/J.197C-800Front Panel
3656A-008Economical Stable Phase Test cable CETI-N/J.N/K.197C-800Label
3656A-009Economical Stable Phase Test cable CETI-N/J.N/J.197C-800DC~3GHz
3656A-01075ohm Test cable 24-0800-51M1-51M1
3656A-01120402 Electronic Calibration KitN to 3.5mm Connector
3656A-01220403 Electronic Calibration KitDual Male
3656A-01320405 Electronic calibration kit80cm
3656A-0143656 series User Manual in Simplified ChineseType N Connector
3656A-0153656 series User Manual in EnglishFemale-Male
3656A-016Aluminum alloy transit case80cm
3656A-017Front panel jumperType N Connector
3656A-018AV2813A 4-port test equipmentDual Male
3656A-019Cabinet80cm
2813A-001Type N Test cable(GORE-OSZKUZKU0240)
2813A-002Type N Test cable(GORE-OSZKUZKV0240)300kHz~18GHz
2813A-003AV2813A User Manual in ChineseType N (Female-Male)
2813A-00420205 Type N Calibration Kit2-Port

Standard Package

No.NameDescription
1Power cord ,1 piece
2USB mouse, 1 piece--
3Quick start guide, 1 piece--
4Certificate of conformity , 1 piece--
5CD, 1 piece
