3680A/B Cable& Antenna Analyzer

发布时间:2019-02-27人气:73

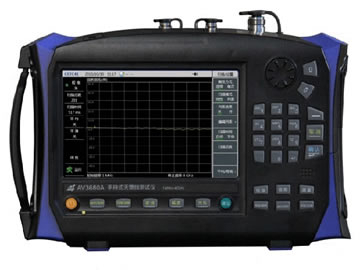

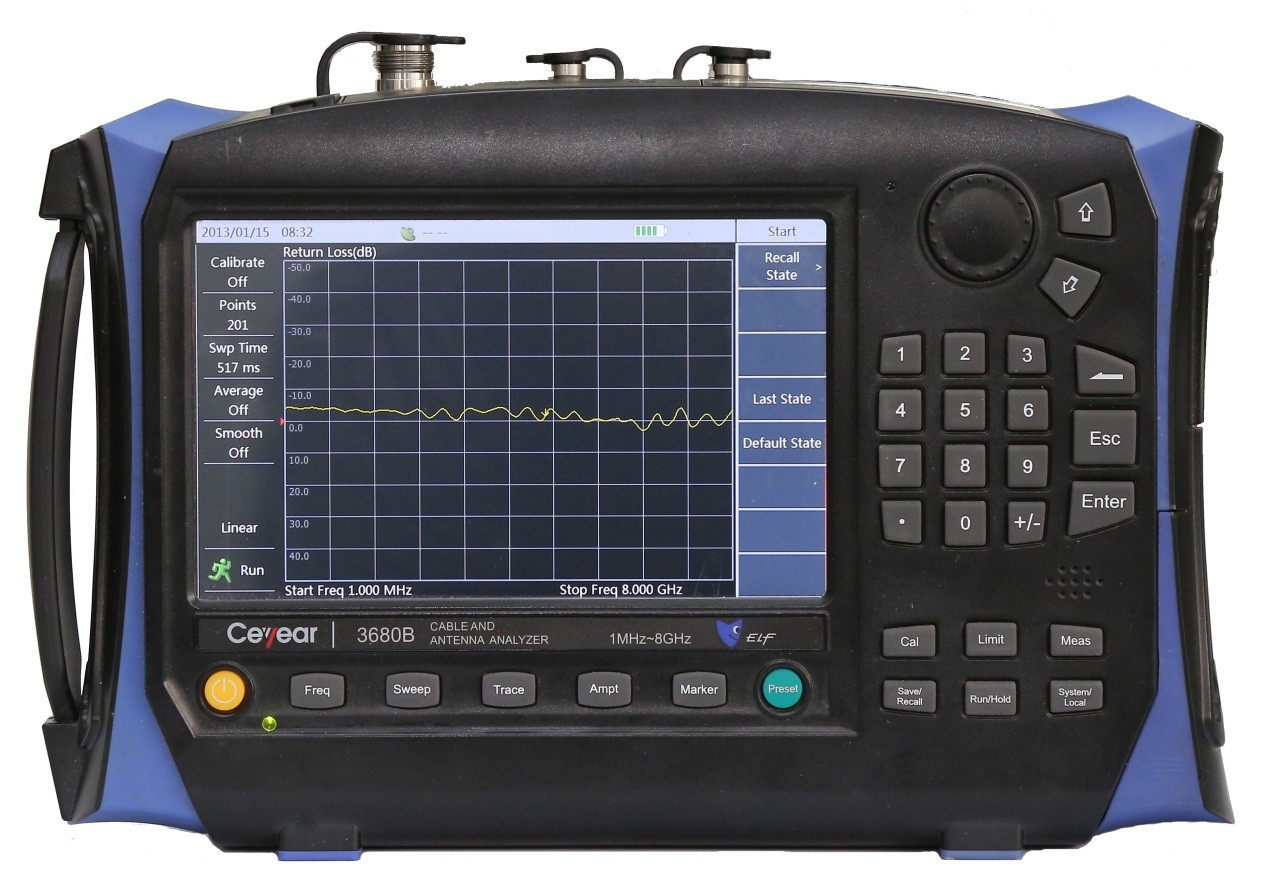

3680A/B Cable & Antenna Analyzer (1MHz4GHz/8GHz)

PRODUCT OVERVIEW

Adopting advanced techniques such as hybrid integration design of RF circuit and digital circuit, wideband fundamental-wave mixing, digital IF processing, intelligent power management, 3680A/B Cable & Antenna Analyzer has advantages of high-speed, high-accuracy, compact, lightweight, battery-powered, touch screen operation, automatic adjustment of backlight brightness. Besides testing VSWR, return loss, characteristic impedance, and phase, it can precisely locate the fault points as well.

3680A/B Cable & Antenna Analyzer is developed for on-site test, which is mainly used for the test of cable & antenna system in various communication base stations, including trunking, GSM, PCS/DCS, CDMA, GPRS, WCDMA, CDMA2000, TD-SCDMA, LTE and paging system.

During the installation, calibration and routine maintenance of cable & antenna system, the cable& antenna analyzer can help users to quickly estimate the status of the transmission line and antenna system, improve the maintenance efficiency of the running base stations and speed up the installation and calibration of new base stations. Besides, it can also be used for the reflection parameter test of RF devices and components in scientific research, teaching and manufacturing.




FUNCTIONS & FEATURES

Support multiple measurements

It supports 7 measurements: return loss, VSWR, cable loss, DTF return loss, DTF VSWR, Smith chart, phase. And it can conduct comprehensive measurement and fault diagnosis on cable and antenna system.

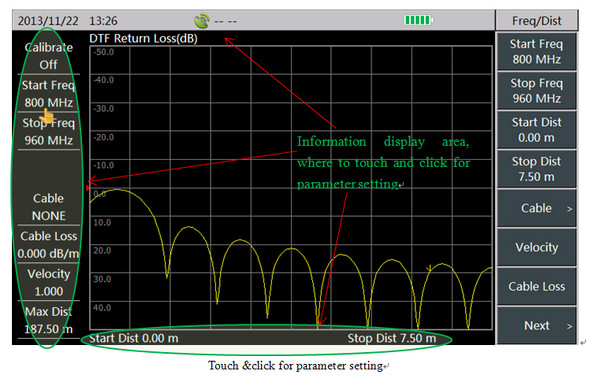

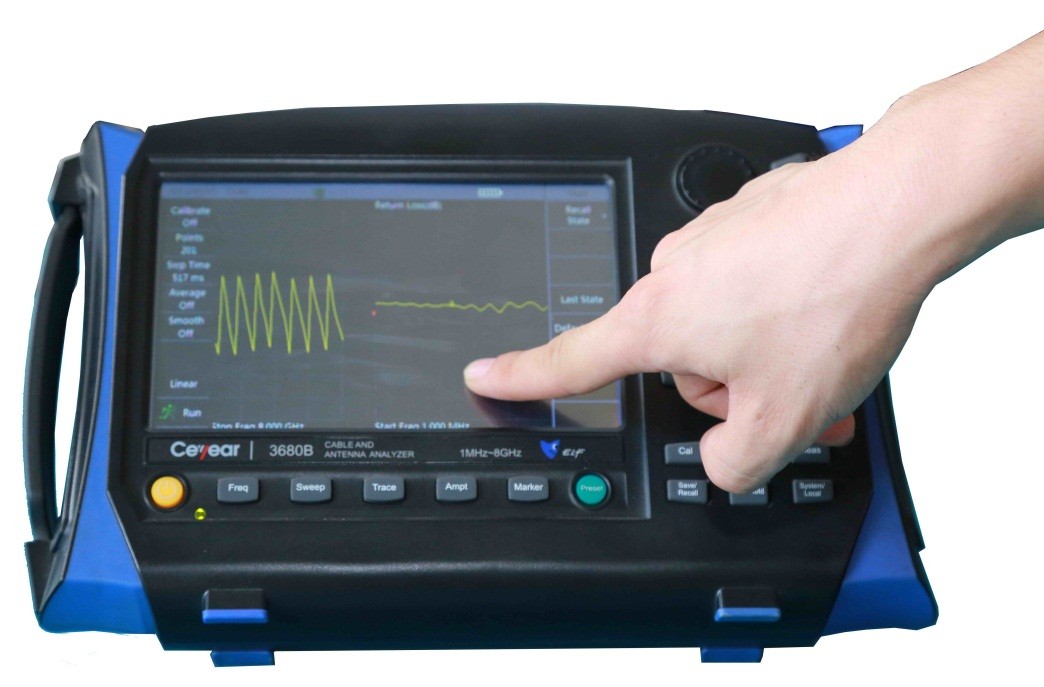

Touch screen operation

The instrument has a 7 inch LCD touch screen. Besides menu operation, users can also set the parameters by clicking all the displayed information on the touch screen.

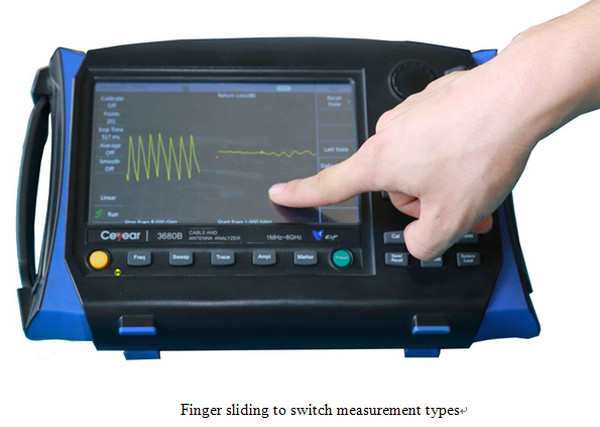

Finger sliding to switch measurement types

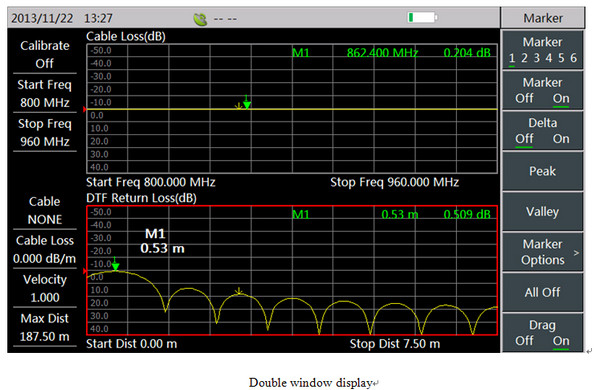

Double window display

Each window can display different measurement types, with its independent maker function.

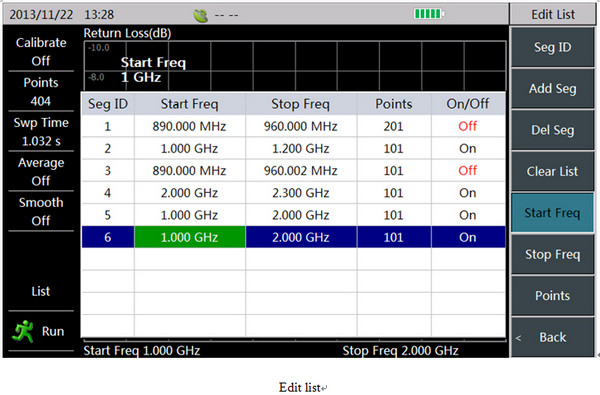

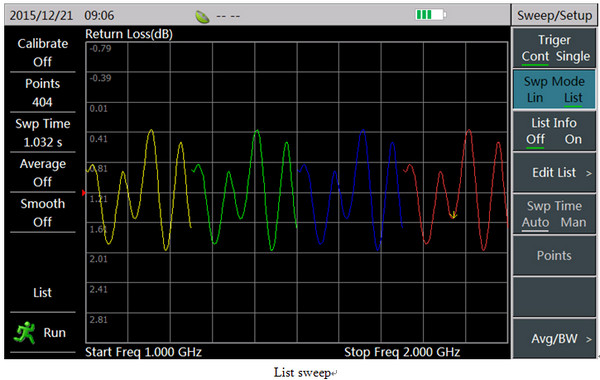

List sweep

The instrument supports list sweep function. Multiple frequency segments can be simultaneously measured, and each sweep segment can be set with different points and frequency rang. The list edit is convenient: directly click the parameters to be edited. Each segment can be opened or closed through “On/Off” setting.

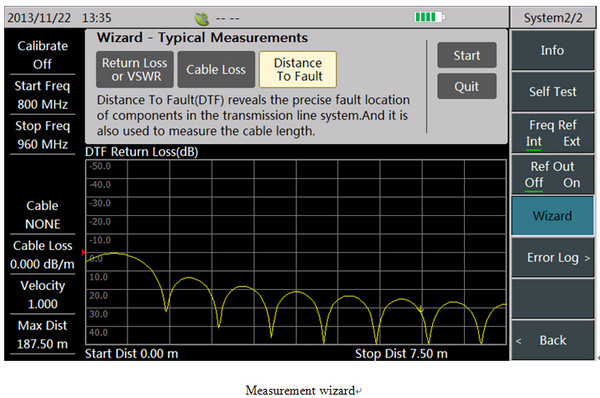

Measurement wizard

The measurement wizard illustrates the operation steps of typical measurements to guide users to finish the measurement and helps them to rapidly get familiar with the instrument operation.

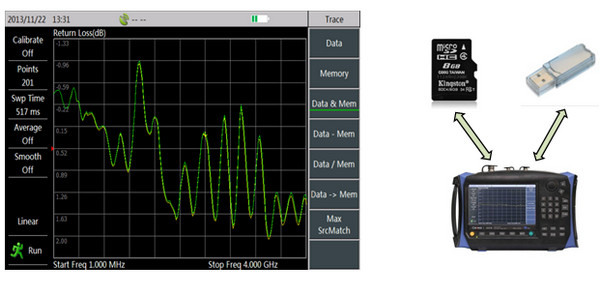

Data Se/Recall

To se measurement traces or state, FLASH memory inside the instrument, SD card, and USB device are all ailable to choose.

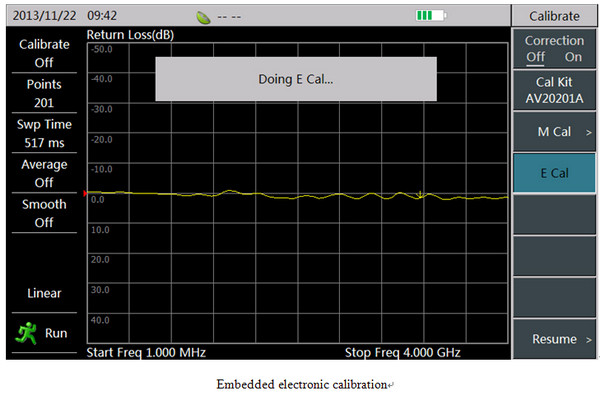

Embedded electronic calibration

3680A has embedded electronic calibration kit to realize “one-click” operation, without any external connection.

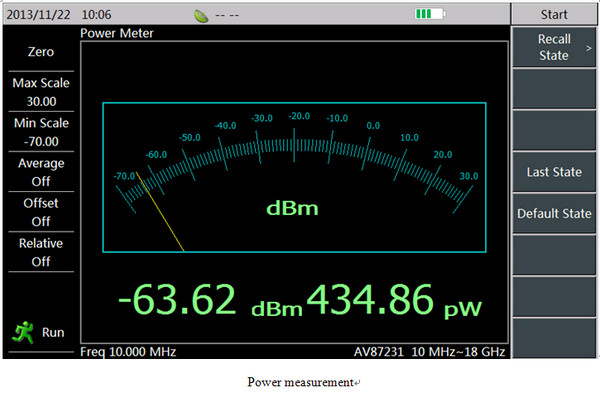

Power measurement

Power measurement option is provided, which can realize accurate power measurement along with external power sensor options.





Resistant to wind & sand

The instrument is suitable for field operation with its resistance to sand, dust, impact and vibration.

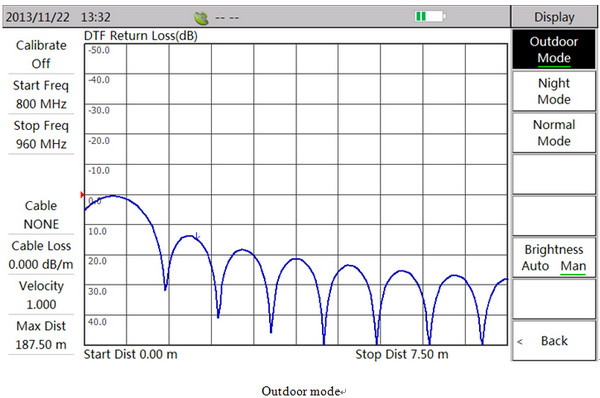

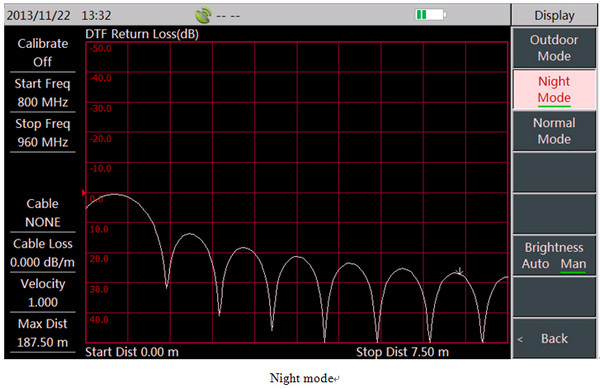

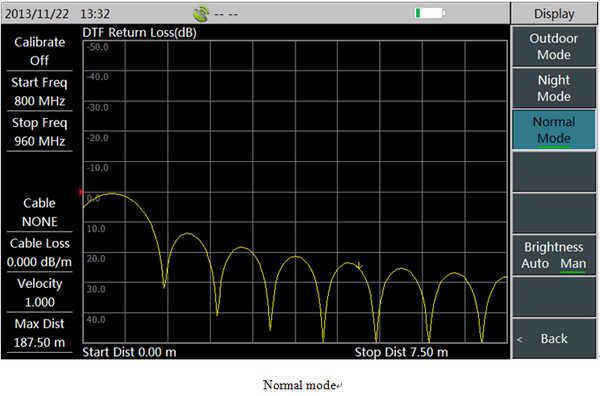

Multiple display modes

The instrument has multiple display modes and function of screen brightness adjustment, which can offer the best display result in different environments.

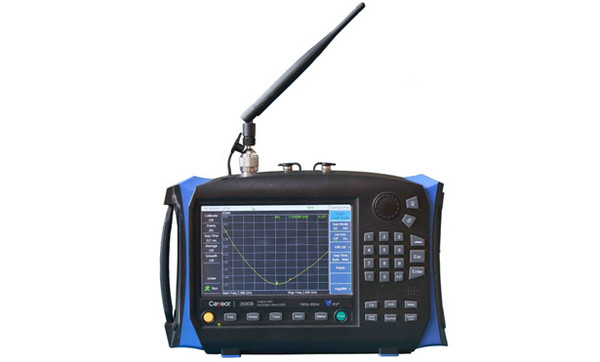

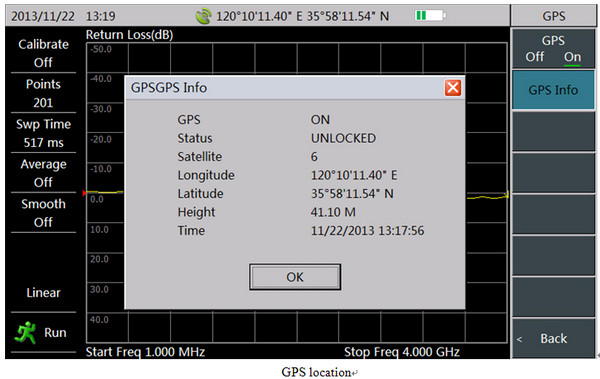

GPS location

The instrument has built-in GPS receiver, with which users can get the current location information through external-added GPS antenna.



High-capacity battery

The built-in high-capacity lithium-ion rechargeable battery can support 3680A to operate 8 hours and 3680B to operate 4 hours. The battery replacement is easy and convenient.

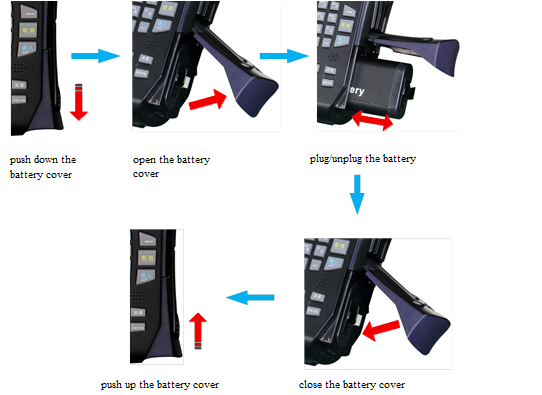

Battery replacement

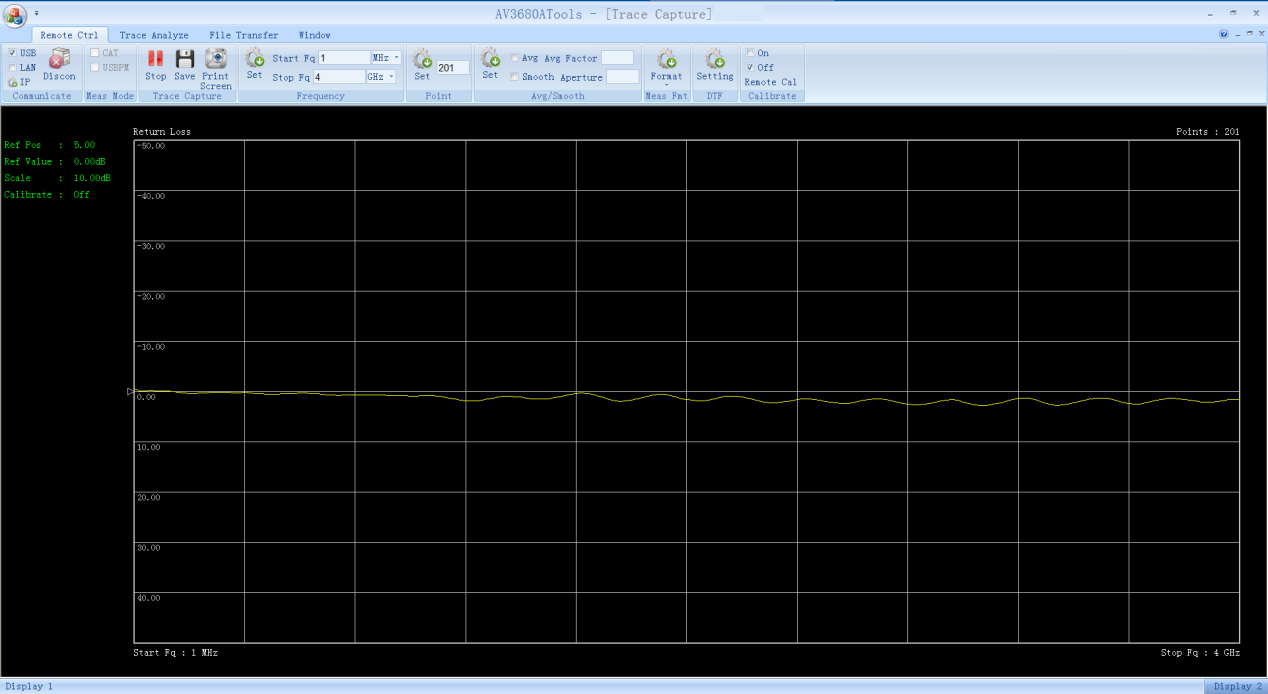

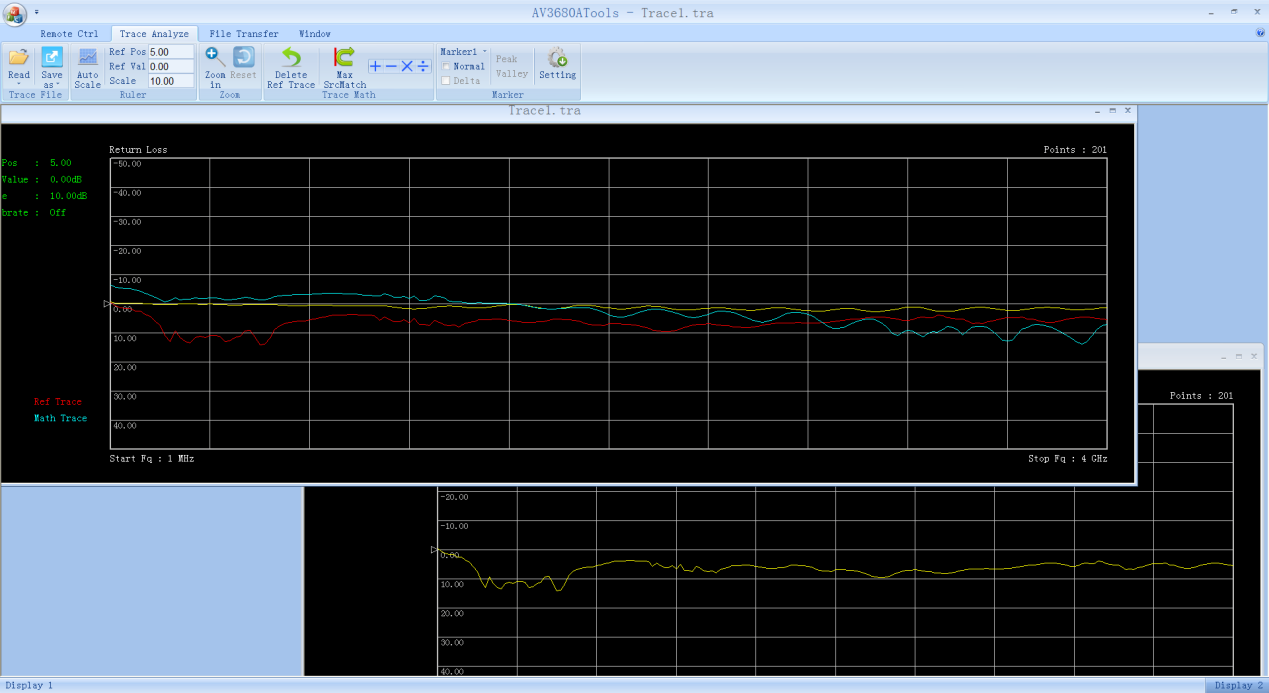

Remote operation & tool software

The instrument can be connected to PC via USB or network interface to realize remote operation. Tool software is also provided for data analysis, real-time data acquisition, and curve Se & Recall.

Bytrace dragging and comparison,traces from different windows can be moved to the same window for math operations.



Trace math operations

Data acquisition







TYPICAL APPLICATIONS

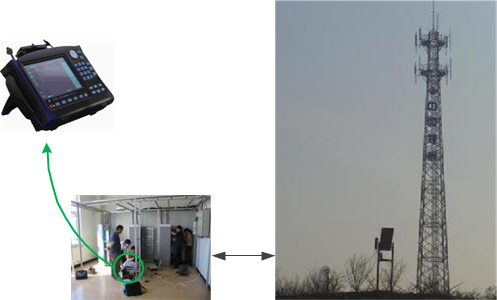

Performance measurement and maintenance of cable & antenna system

AV3680A/B Cable & Antenna Analyzer is developed for the daily measurement & maintenance of cable & antenna system, which can realize the measurement of VSWR, return loss, cable loss etc.. It has unique FDR technique, and with functions of Distance-to-Fault (DTF) VSWR and Distance-to-Fault (DTF) return loss, it can precisely locate even tiny problems, and thus eliminate potential risks. During the installation, calibration and routine maintenance of the cable & antenna system, AV3680A/B Cable & Antenna Analyzer can help users to quickly estimate the status of the transmission and feed line system, which can improve the maintenance efficiency of running base stations and speed up the installation and calibration of new base stations.



Cable & antenna performance measurement

AV3680A/B Cable & Antenna Analyzer offers multiple measurement modes to measure the cable loss, return loss, and VSWR of the cables.





Cable & antenna performance measurement

3680A/B Cable & Antenna Analyzer offers multiple measurement modes to measure the cable loss, return loss, and VSWR of the cables.

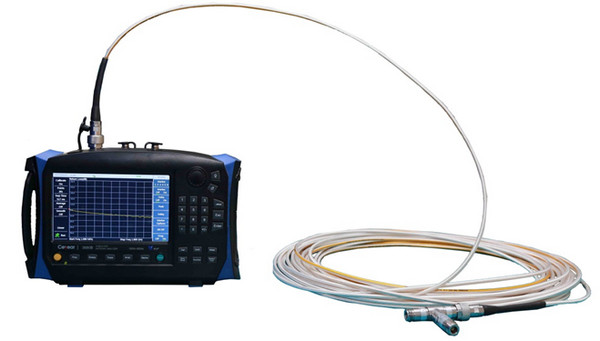

Cable loss measurement

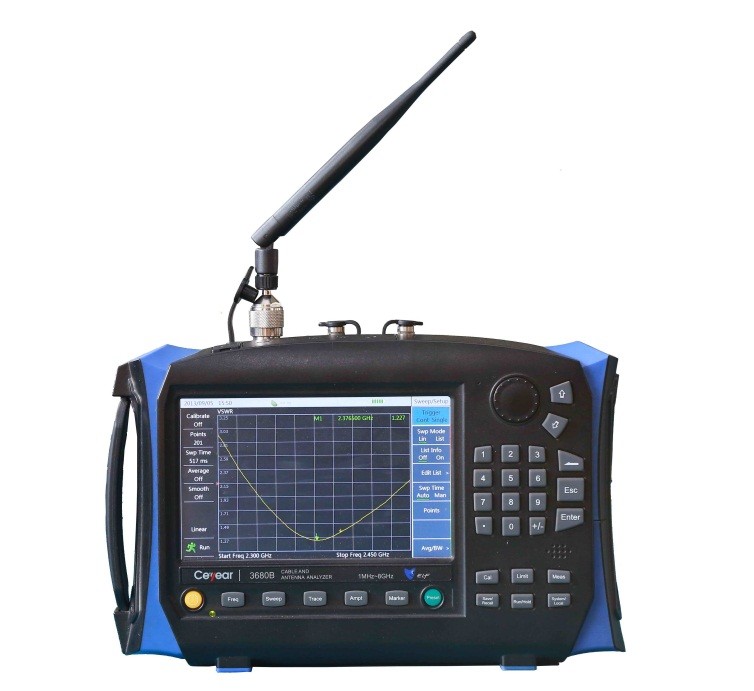

Antenna return loss/VSWR measurement

Model

3680A

3680B

Frequency Range

1MHz4GHz

1MHz8GHz

Initial Frequency Error

±2×10-6 (23)

±2.5×10-6 (23)

Frequency Temperature Stability

±1×10-6/10 (23)

±1×10-6/10 (23)

Frequency Resolution

1kHz

1kHz

Directivity

≥42dB (Mechanical Calibration)

≥35dB(Embedded Electronic Calibration)

≥42dB1MHz6GHz

≥36dB6GHz8GHz

Source Match

≥31dB (Mechanical calibration)

≥31dB

Reflection Track

±0.08dB (Mechanical calibration)

±0.08dB

Battery Capacity

8h (Without embedded calibration option, 70% brightness)

6h (With embedded calibration option)

4h

Power Consumption

15W (No battery charging)

≤54W (Battery charging)

18W (No battery charging)

≤54W (Battery charging)

Sweep Time

1ms/Frequency point (10kHz IF bandwidth)

Power Adapter

AC Power:

110V (1±10) or 220V (1±10), 50Hz (1±5)

Size

295mm (W)×205mm (H)×70mm (D)

Weight

2.5kg (With battery)

Operating Temperature

-10+50

Storage Temperature

-40+70

Electromagnetic Compatibility

Conforms to Regulations of GJB3947A-2009 3.9.1

Test Port

Type N, Female

10MHz Input/output Port

BNC

GPS Antenna Interface

BNC

Main Unit

No.NameDescription
3680ACable & Antenna Analyzer1MHz~4GHz
3680BCable & Antenna Analyzer1MHz~8GHz

Hardware Options

No.NameDescription
3680A-001English Options
3680A-002User Manual (in English)
3680A-003User Manual (in Simplified Chinese)
3680A-004Programming Manual (in Simplified Chinese)
3680A-005Programming Manual (in English)
3680A-006USB Power MeasurementPower Measurement
3680A-00787230 USB CW Power Sensor9kHz~6GHz Power Sensor
3680A-00887231 USB CW Power Sensor10MHz~18GHz Power Sensor
3680A-00987232 USB CW Power Sensor50MHz~26.5GHz Power Sensor
3680A-01087233 USB CW Power Sensor50MHz~40GHz Power Sensor
3680A-011Rechargeable Lithium-Ion BatterySpare Battery
3680A-012Type N Male Calibration KitAV31101ADC~18GHz Calibration Kit
3680A-013Type N Female Calibration Kit AV31101BDC~18GHz Calibration Kit
3680A-014Type N Male Calibration KitAV20201ADC~9GHz Calibration Kit
3680A-015Type N Female Calibration KitAV20201BDC~9GHz Calibration Kit
3680A-016Functional Bag
3680A-017Carrying Backpack
3680A-018Transit Case
3680A-019N-DIN Adapter L29/N-KJ-TN-DIN Adapter
3680A-020N-DIN AdapterL29/N-JJ-TN-DINAdapter
3680A-021GPS AntennaGPS External Antenna
3680A-022Low-Loss Cable N-JK (80cm)Test Port Extending Cable
3680A-023Low-Loss Cable N-JJ (80cm)Test Port Extending Cable
3680A-024Cat5e cable (2m)Point-to-Point Cable
3680A-025MicroSD Class48G
3680A-026Power AdapterPower adapter
3680A-027Embedded Electronic Calibration KitBuilt-in
3680A-028Economical Calibration Kits (Male)DC~9GHz Calibration Kit

Standard Package

No.NameDescription
1Power CordStandard tri-prong power cord
2Power Adapter
3Quick Start Guide1 pc
4PC Tool Software CD
5USB Cable
6Built-in Rechargeable Lithium-Ion Battery
7Charger on Vehicle
8Certificate of Conformity
