TelcomWay M210A Handheld Fusion Splicer

发布时间:2020-07-16人气:49

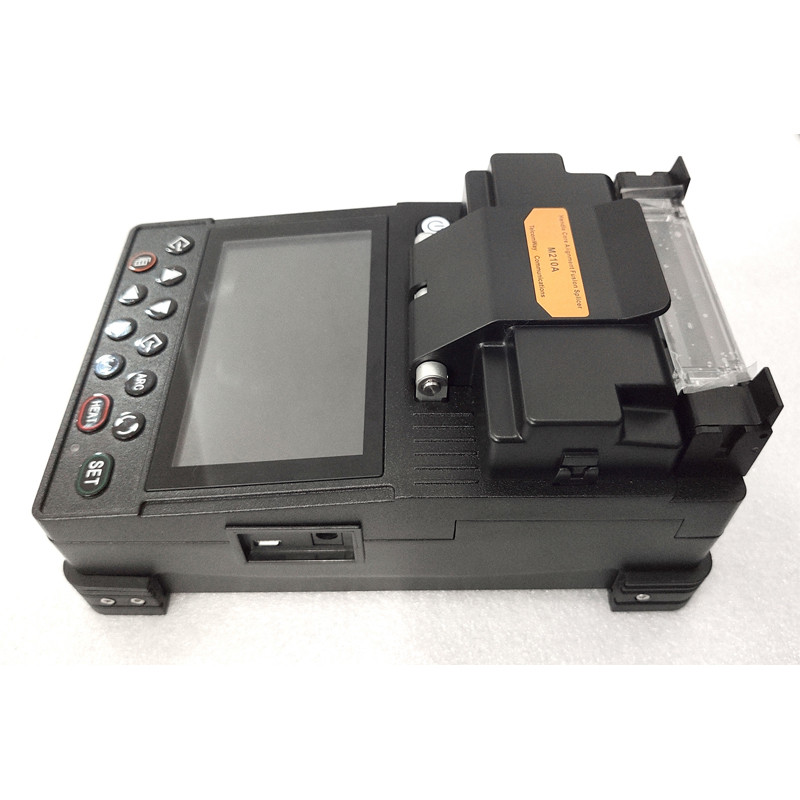

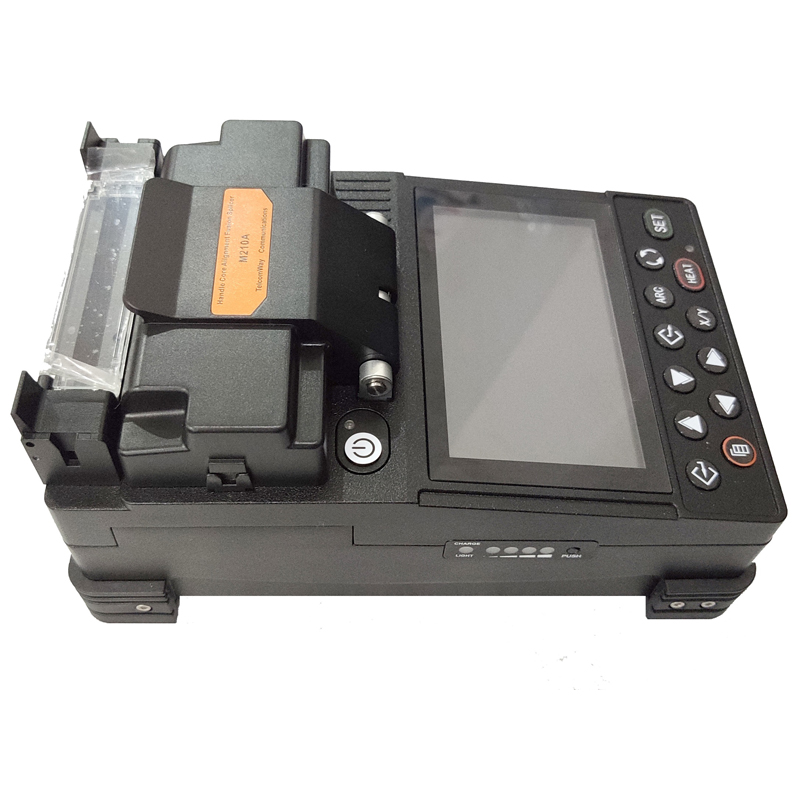

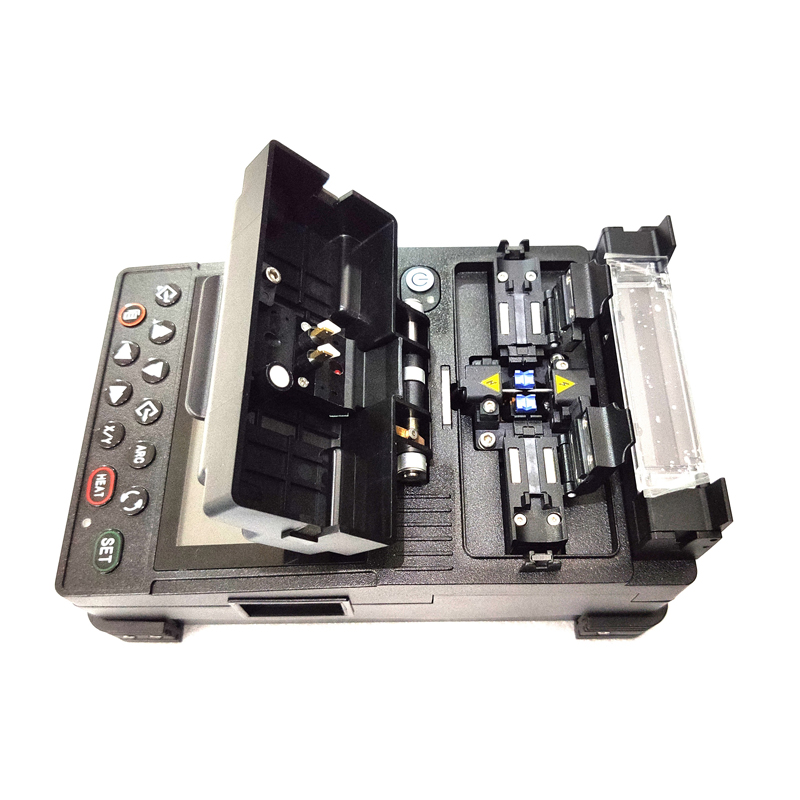

 M210A Handheld Fusion Splicer

Handheld Fusion Splicer, with smart appearance, reliable quality, it is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

   Features

 ● Used for FTTH and ordinary fiber project    Core to core alignment by PAS technology

 8 sec splicing time and 30 sec heat time      300 X or Y view, 150 X and Y view

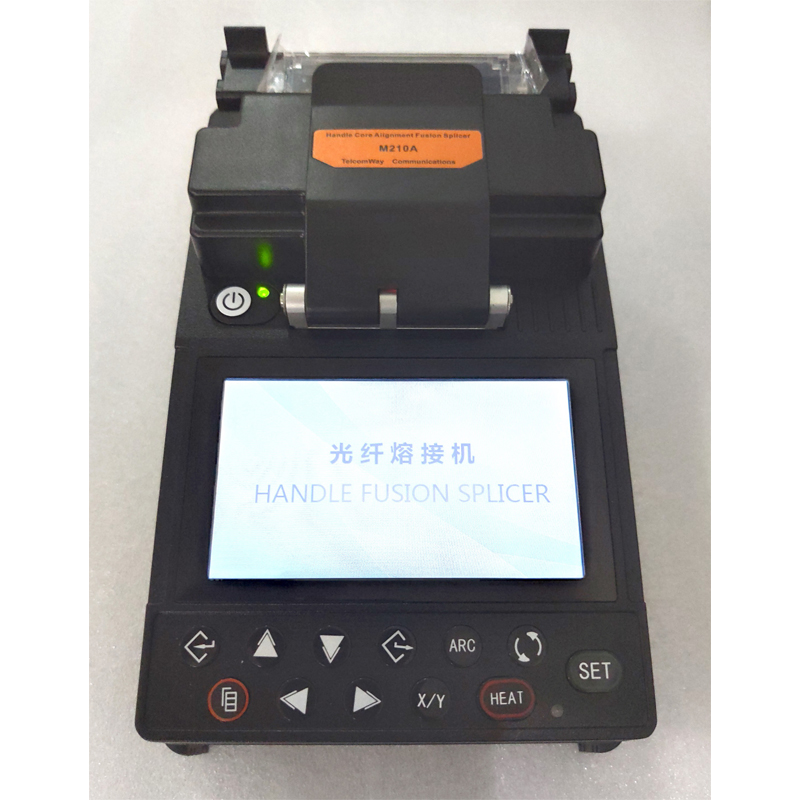

 4.3 inch digital high quality LCD screen with high strength protection panel, observe X and Y view at same time

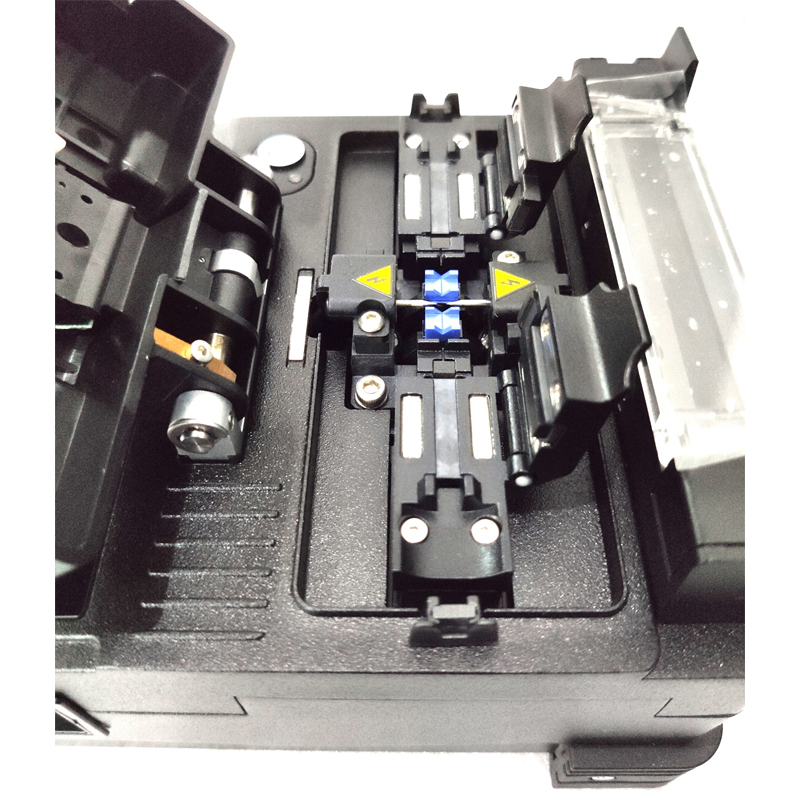

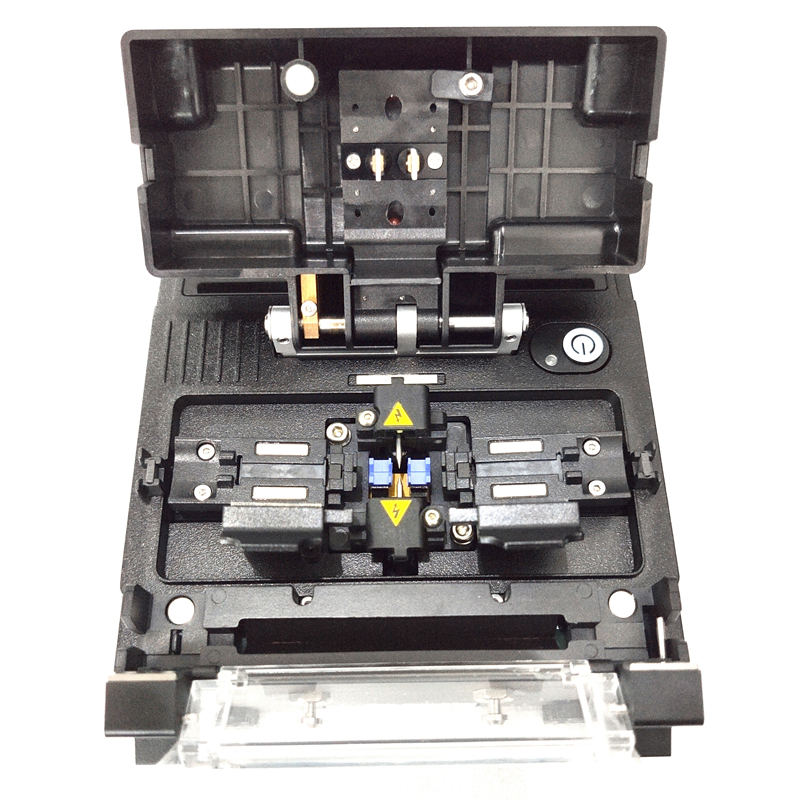

 Three in one fixture, splicing single fiber, cable indoor and pigtail

 Built in large capacity lithium battery of 200 times splicing and heating

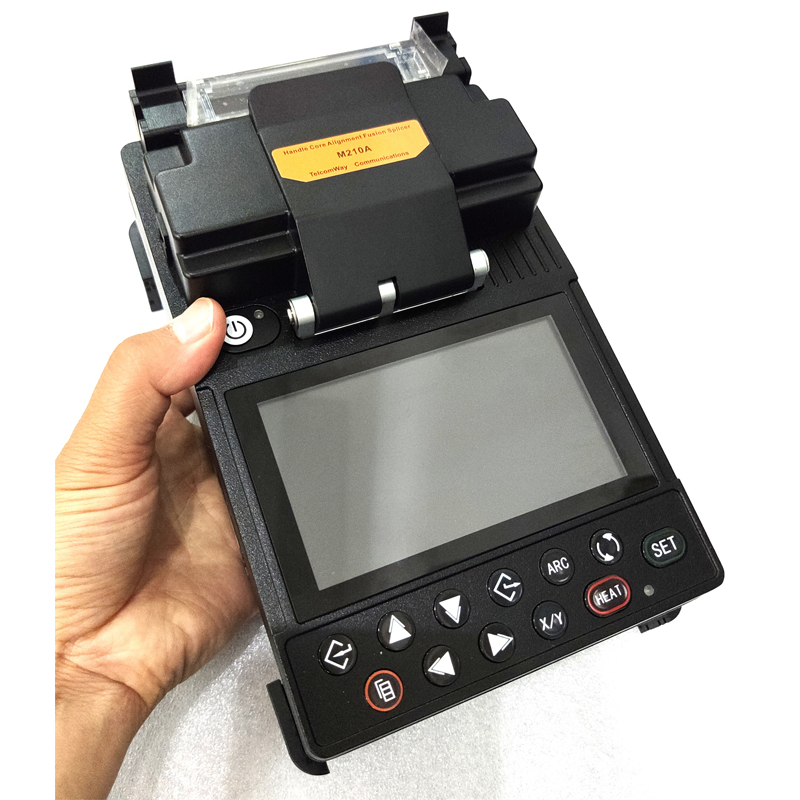

Small size and light weight, 1.6KG including battery

Specifications

  Model

  Handheld Fusion Splicer

Splicing Type

SM, MM, DS, NZDS

Splicing Loss

0.02dB(SM)0.01dB(MM)0.04dB(DS)0.04dB(NZDS)

Return Loss

>60dB

Splicing Mode

Manual, Half Auto, Auto

Fiber Alignment

Core to Core Alignment by PAS technology

Applicable Fiber

Cable indoor and 0.25mm,0.9mm fiber,   SC connector(option)

Splicing Time

9s

Heat Time

30s AUTO HEAT

Cleaved Length

816mm

Fiber Image/ Magnification

300/150

View Display

4.3 inch digital high quality LCD screen

Tension Test

Standard 2N (option)

Heat Shrinkable Sleeve

60mm, 40mm and serials heat Shrinkable Sleeve

Battery Capacity

300 cycles splicing and heating,  3 hours charging time

 ( splicing and charging at same time)

Battery Life

Cycling charge 300-500 times, easy to replace battery

Electrodes Life

3000, easy to replace electrodes

Power Source

≤20W

Interface

USB   Convenient data download and software update

Construction Lighting

Built in high brightness, wide range of lights, easy to operate at night

Power supply

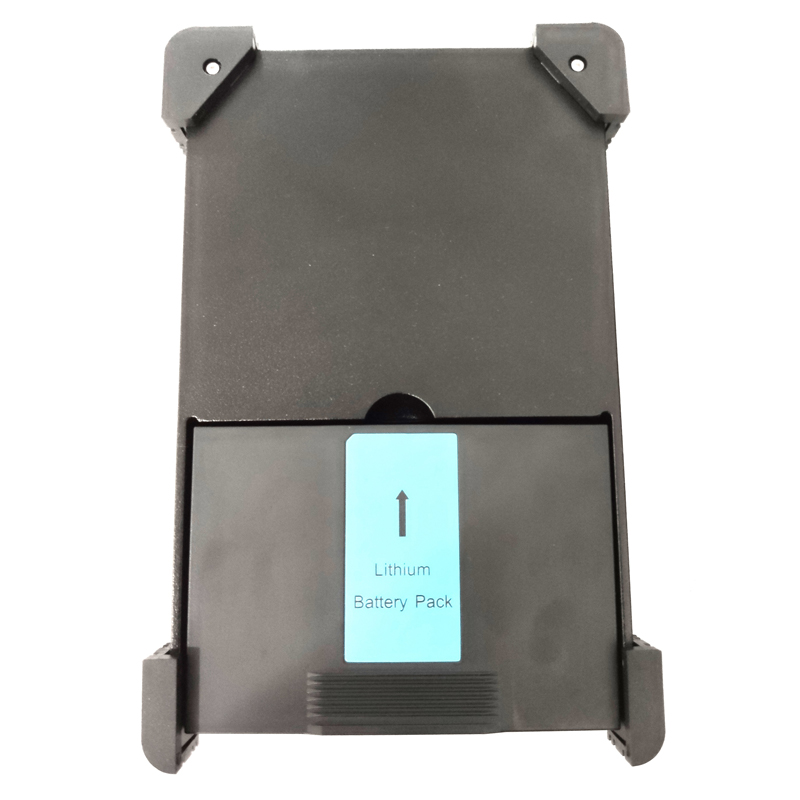

Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A

Operating Condition

0-5000m above sea level, Temperature: -10-60,

Humidity:095%RH (No dew)

Weight

1.6KG (including battery), 1.1KG (excluding battery)

Dimension (LxWxH)

200mm(L)×130mm(W)×98mm(H)


 M210A Handheld Fusion Splicer

Standard Configuration

No

Name

Qty

1

 Fusion Splicer

1 set

2

 Fiber Cleaver

1 pc

3

 Fiber Stripper

1 pc

4

 AC Adaptor

1 pc

5

 Li Battery

1 pc

6

 Charger

1 pc

7

 Spare Electrodes

1 pair

8

 Cooling Tray

1 pc

9

User Manual

1 pc

10

Carrying Case

1 pc
