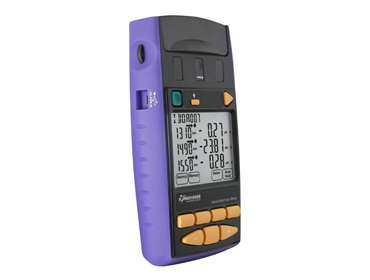

kingfisher KI 2600 Handheld Power Meter

发布时间:2019-02-27人气:144



KI 2600 Series Hand Held Fiber Meter


Optical Communications Test Applications

• System power testing

• Attenuation testing

• Fiber identification

• Fault Finding & Continuity Testing



Revision 16


A fully-featured Hand Held Optical Power Meter used for testing fiber optic communications systems.

Superior measurement confidence is achieved through a combination of excellent basic accuracy, intuitive use and rugged reliability.

Options cover power levels from +33 to -70 dBm, all useful wavelengths, many connector styles including duplex / ribbon, and large core POF fiber.

Features

Reliable, rugged & versatile

• Simple to use

Very long battery life

LCD is large, clear, sunlight readable & backlit

Interchangeable connectors with dust cap/tilt bail

28 genuine 1% calibration wavelengths

External power / charger via micro USB port

Memory with text, timestamp and USB dump

Simultaneous 3 λ loss display with Autotest source

Flexible real-time PC reporting software

Multi-Fiber ID tone for fiber identification

Optional visual fault finder

Power averaging mode for modulated signal

Max / Min recording

3 years calibration cycle

• External power / charging via USB

• 3 ~ 7 Year warranty

• Made in Australia


KI 2600 Series - Hand Held Fiber Meter


The KI 2600 Hand Held Fiber Meter measures absolute or relative light levels and test tones in fiber optic systems.

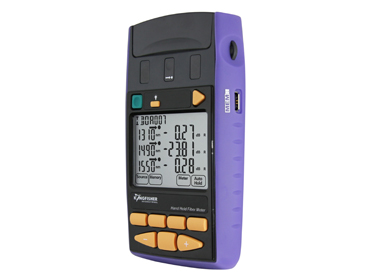

Autotest provides fast, easy and automatic multi λ (wavelength) loss testing up to 6 λ, with up to 3 λ displayed simultaneously, along with the respective source nominal power levels. Any Kingfisher Autotest light source/LTS with matching λ can be used.

The meter displays mW, µW, nW, dB, dBm to 0.01 dB resolution, with no range changing delays. A separate reference for each λ is stored and displayed. Superior high power performance is achieved.

Unique in the industry, the tight Total Uncertainty specification covers all power levels, temperatures, connectors and fibers, without warm up or user dark current offset.

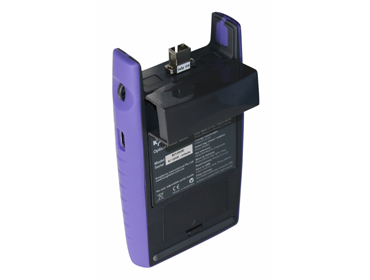

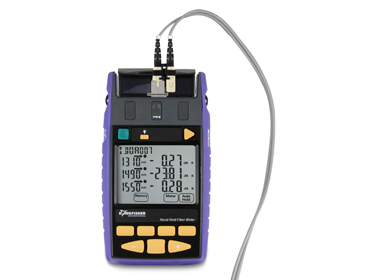

Interchangeable connectors are dust and drop protected. SC adaptors are supplied, with others available including small form factor LC styles. Metal free adaptors avoid contamination of connectors in high power systems.

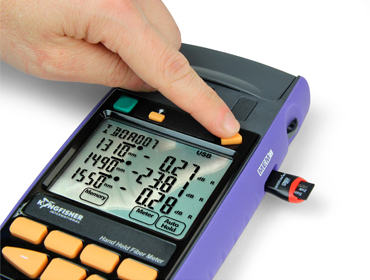

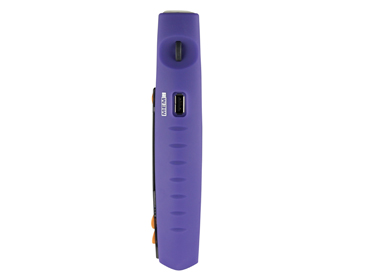

Loss test results can be stored in the large memory, along with a user-input cable name and timestamp. Results can be copied onto a USB memory key with one button push. Alternatively, live readings can be put directly onto a customer report computer using KITS™ customizable Excel-based reporting software. Reports can be easily customized for any terminology, language or format.  KITS™ also provides a one-button file dump to a PC with Windows OS.

When used with Multi-Fiber ID sources, the Multi-Fiber ID tone feature uniquely identifies up to 12 fibers, in addition to common test tones.

The VFL (Visible Fault Locator) option offers simple fault finding and continuity testing.

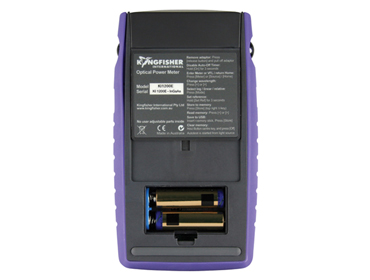

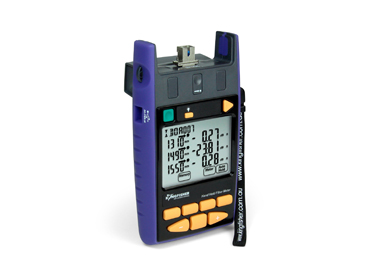

Flexible power options include a choice of batteries, with a jumper selectable battery charger. External power is via USB.

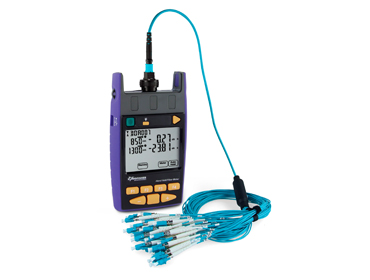

See alternative brochure for instrument versions with large area detectors up to +33 dBm. For use with e.g. ribbon fiber, MPO/MT/MTP and MTRJ, large core fiber such as POF, fiber bundles, high power pump lasers, other general optical applications etc.



Specifications



Response

l

nm

Damage        level

dBm

Calibration l

nm

Power

range

dBm

Tone & Autotest

Min

dBm

Midrange

linearity1

dB

Calibration

Accuracy2

%

Polarization

Sensitivity

dB

Total

Uncertainty

dB 3, 5

l

Sensitivity

± 30 nm5 dB

InGaAs detector

600 ~ 1700

+15



780, 820, 850, 980

1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650

+10 ~ -60

+10 ~ -70

-45

-50



0.02

1 %
(0.06 dB)

< 0.005

0.3

0.03

H5 (InGaAs) detector

800 ~ 1700

+274



820, 850, 980

1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650

+24 ~ -50

+24 ~ -60

-35

-40



0.02

1 %
(0.06 dB)

< 0.005

0.35

0.03

Ge detector

600 ~ 1650

+25



635, 650, 660, 780, 820, 1590, 1610, 1625, 1650

850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570

+15 ~ -50
+15 ~ -60

-40
-50

0.04

1 %
(0.06 dB)

< 0.005

0.5

0.03






typical


typical

max

typical



Note 1: Midrange linearity excludes top 5 dB and bottom 10 dB of range.

Note 2: Calibration condition: non coherent light, -35±5 dBm, 23±1°C, ±1 nm, 10±3 nm FWHM, PC ceramic connector, 100 mm fiber.

Note 3: Includes contributions of: varying optical connector types, calibration uncertainty, linearity over temperature & range, and fiber core diameter up to 200 mm

Note 4: H5 can sustain the damage level for 2 minutes.

Note 5: At calibration wavelengths in bold type.





VFL Specifications



Parameters

Value

Output power

+2 ± 1 dBm

Wavelength

650 nm

l width

3 nm

Modulation

CW, 2, 270, 1k, 2k Hz






GENERAL Specifications



Parameters

Values

Battery life

Size / Weight

LCD size

Up to 1000 hours laser & backlit off / 200 hours laser in blink mode

190 x 105 x 35 mm (7.5 x 4.1 x 1.4”) / 420 gm (0.9 lb.). Shipping 1.5 Kg (3.3 lb.)

74 x 55 mm / 2.9 x 2.2”

Operating / Storage

Relative humidity

Case

Dust cap

Tone detection

-15 to 55 °C / -25 to 70 °C

0 ~ 95 %

Polycarbonate / rubber edges & corners, moisture resistance, 1-meter drop tested

Captive, functions as tilt bail when slid open

150 ~ 9900 Hz ± 1 %

Max / min

Power



Recording feature for stability testing

2 x Alkaline / Lithium AA cells   or   2 x NiMH AA cells, user selectable charging; Ext power input via micro USB; Selectable auto-off, low battery indicator, backlit display

Memory

USB interfaces

Calibration cycle

1000 4-λ tests with date & time in internal memory, unlimited on USB memory key

USB-micro type connector for general USB & power; USB-A type connector for memory key only

3 years





ORDERING INFORMATION



Description

Part Number

Instrument, Power Meter InGaAs

KI2600-InGaAs

Instrument, Power Meter InGaAs, VFL

KI2601-InGaAs

Instrument, Power Meter H5

KI2600-H5

Instrument, Power Meter H5, VFL

KI2601-H5

Instrument, Power Meter Ge

KI2600-Ge

Instrument, Power Meter Ge, VFL

KI2601-Ge



Please enquire for non-standard specifications



STANDARD ACCESSORIES



Description

Quantity

KI 2600 series

KI 2601 series

SC connector adaptor (OPT046)

1

2

Operation manual

1

QA certificates

1

Calibration certificate

1

Carry Pouch (OPT149)

1

Carry strap

1

USB-A to USB-micro type cable

1

KITS™ Recording/Reporting software

Download from website for free



OPTIONAL ACCESSORIES

Description

Part number

Option, Carry Case, KI2x/KI7x/KI3x, small (Carry Case for 2 Instruments)

OPT153*

Option, Carry Case, Cletop, Cleaning Sticks, KI2x / KI9x, large

OPT154B*

 Please visit kingfisherfiber.com for a wide range of FiberTester kits.



OPTIONAL INTERCHANGEABLE CONNECTOR ADAPTORS





Description

Part number

Description

Part number

Option, Hybrid Adaptor, Ceramic Sleeve, SC/FC

OPT051

Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000

OPT060

Option, Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body

OPT076

Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000 Green

OPT060G

Option, Hybrid Adaptor, Ceramic Sleeve, SC/ST

OPT040

Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 1.25 mm

OPT084

Option, Hybrid Adaptor, Ceramic Sleeve, SC/D4

OPT055

Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 2.5 mm

OPT081

Option, Hybrid Adaptor, Ceramic Sleeve, SC/MU

OPT080

Option, Hybrid Adaptor, Metal Sleeve, SC/SMA 905/906

OPT082



Option, Hybrid Adaptor, Ceramic Sleeve, SC/LSA-DIN47256

OPT071

Option, Hybrid Adaptor, Ceramic Sleeve, SC/F3000 or LC Simplex, plastic body

OPT072

The power meter works with both PC and APC connectors.



History Record

Revision

Date

Editor

Change Description

16

Jul 2016

TO Ng

In SPECIFICATIONS section:

Changed,

“Note 3: Includes contributions of: varying optical connector types, calibration uncertainty, full temperature, dynamic range and fiber core diameter up to 200 um.”



to,

“Note 3: Includes contributions of: varying optical connector types, calibration uncertainty, linearity over temperature & range, and fiber core diameter up to 200 mm.”



Reason of change: Detector’s responsivity linearity over temperature affect the power measurement uncertainty; see attachment……
