KI 2400/2800 Series Hand Held Optical Light Source

发布时间:2019-02-27人气:137


KI 2400/2800 Series



Hand Held Optical Light Source


Optical Communications Test Applications

• Mixed single mode, multimode & POF testing to 6 l

• Multi-Fiber polarity checking and fiber identification

• Encircled Flux compliant testing

• Tone source for fiber identifier

• Innovative and useful VisiTester feature



Revision 19



The KI 2400 / 2800 series Hand Held Fiber Sources are used with an Optical Power Meter to test loss on single mode, multimode & POF optical fiber systems, at up to 6 wavelengths.

The 2800 series provide excellent stability, and the 2400 series provide exceptional stability with zero warm up.

High productivity, high availability and ease of use combine to achieve superior measurement confidence.

The innovative and unique VisiTester option is helpful for general loss testing, continuity testing & fault finding.

These Autotest sources can be used with any Kingfisher Autotest optical power meter, loss test set or two way tester. Features

• Reliable, rugged & versatile

• Simple to use

• Ideal for mixed MMF & SMF testing

• Up to 6 mixed LED, Laser & VFL sources

• Excellent optical power stability

• Excellent re-connection repeatability

• LCD is large, clear, sunlight readable & backlit

• Autotest compatibility with other instruments

• Optical test tone with Multi-Fiber ID function

• VisiTester easily identifies active test channel

• Interchangeable connectors with dust cap / tilt bail

• Encircled Flux compliant multimode LED sources

• Multimode sources supplied with mandrel wraps

• KI 2400 series is ultra-stable with zero warm up

• Long battery life

• External power / charging via USB

• 3 ~ 7 Year warranty

• 3 year calibration cycle

• Made in Australia

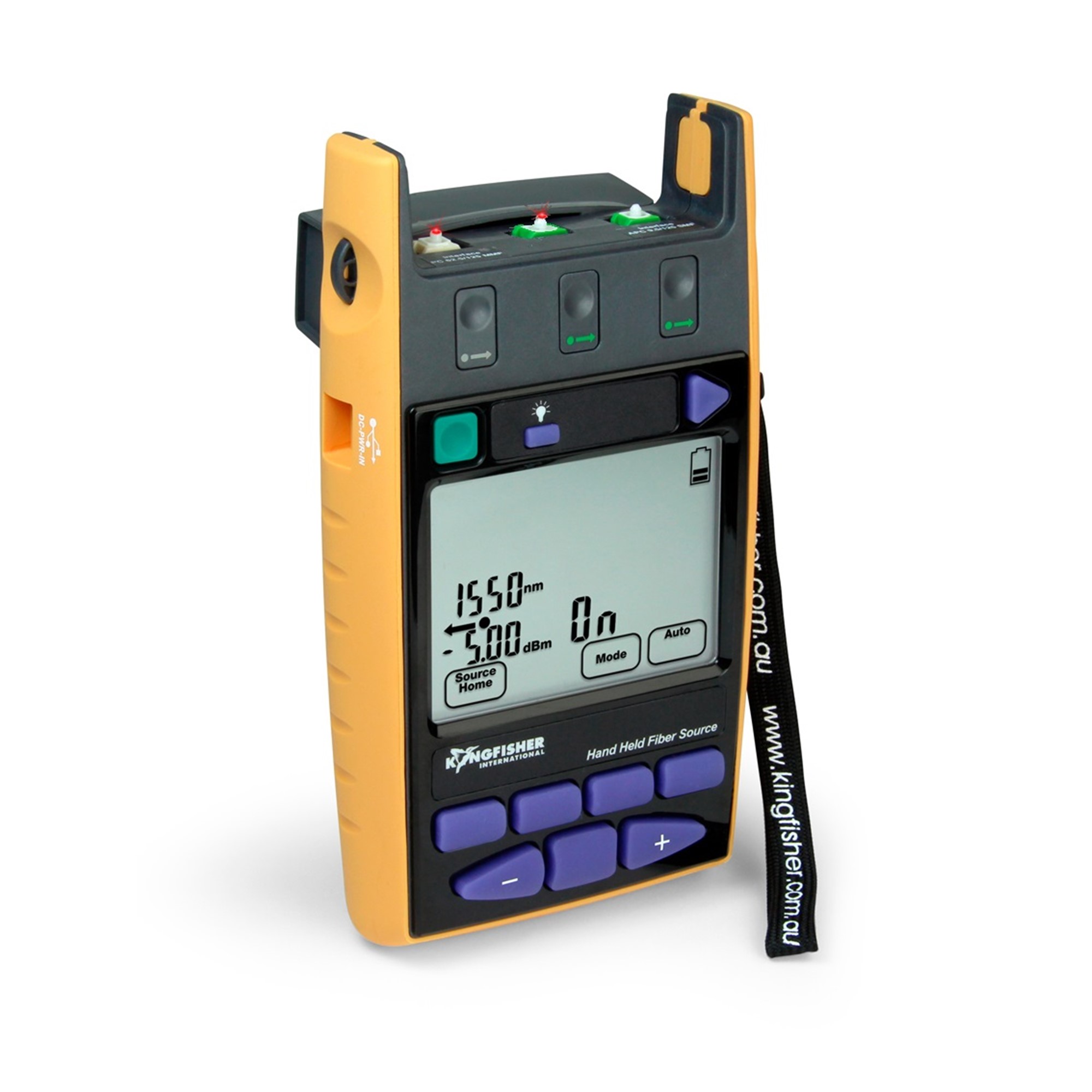

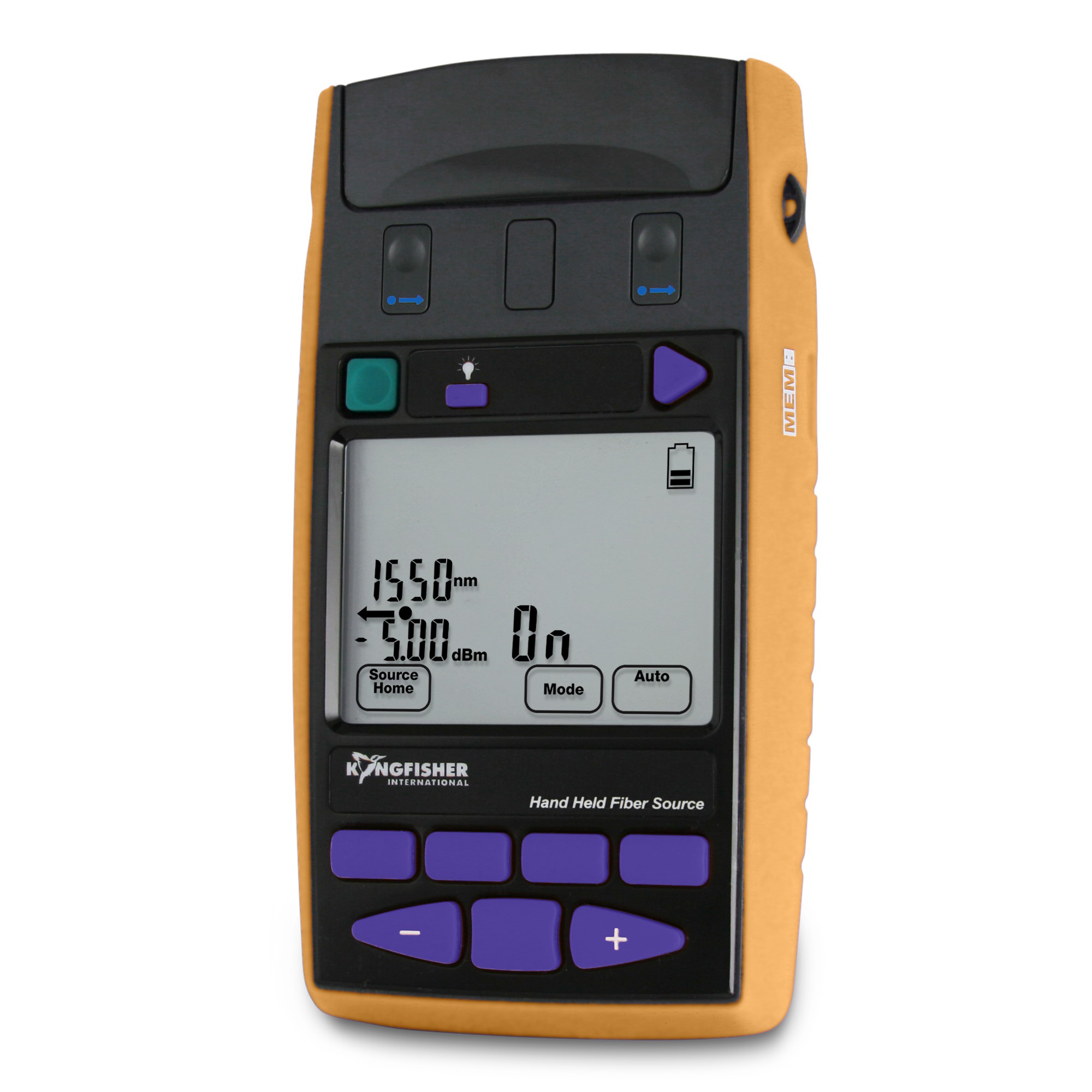

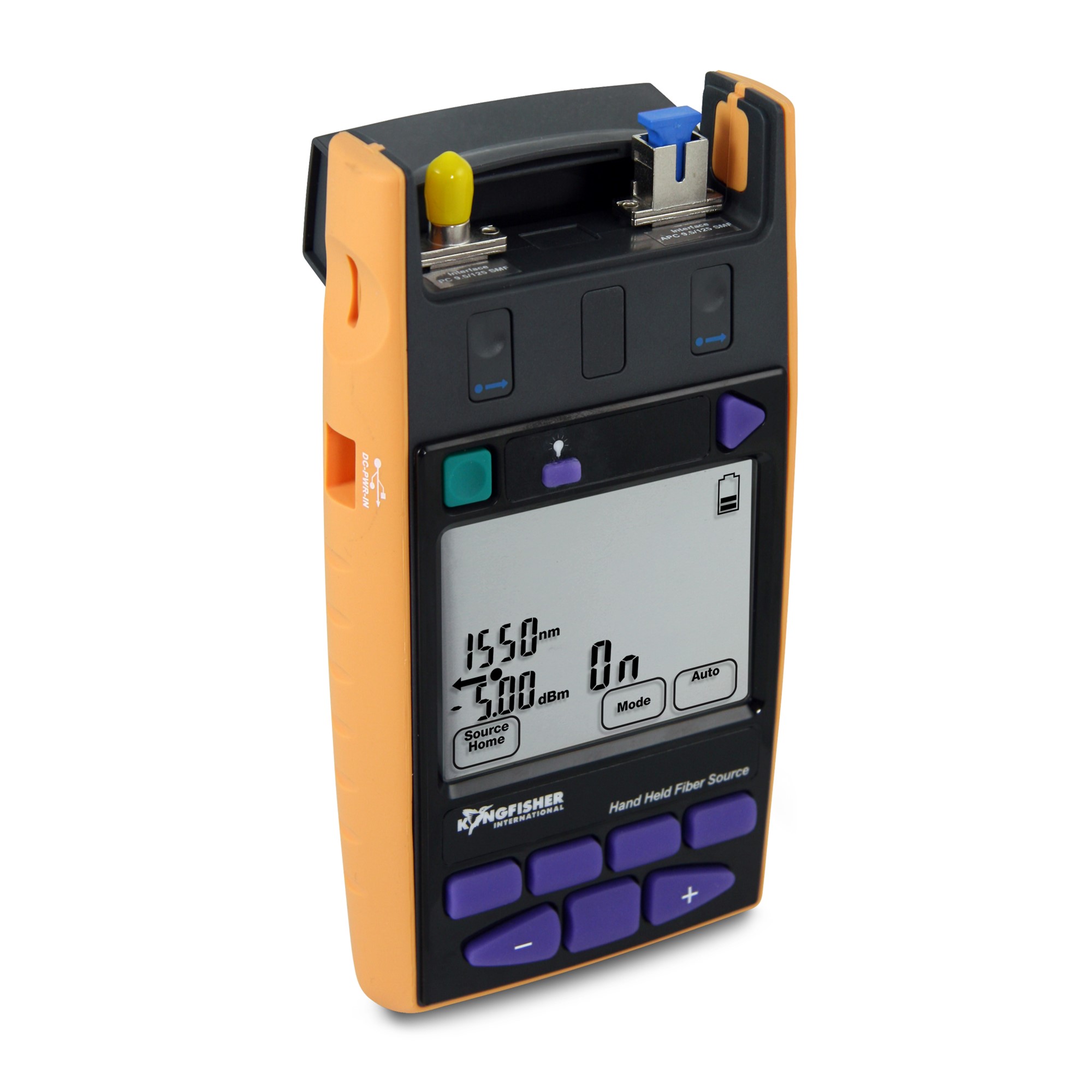

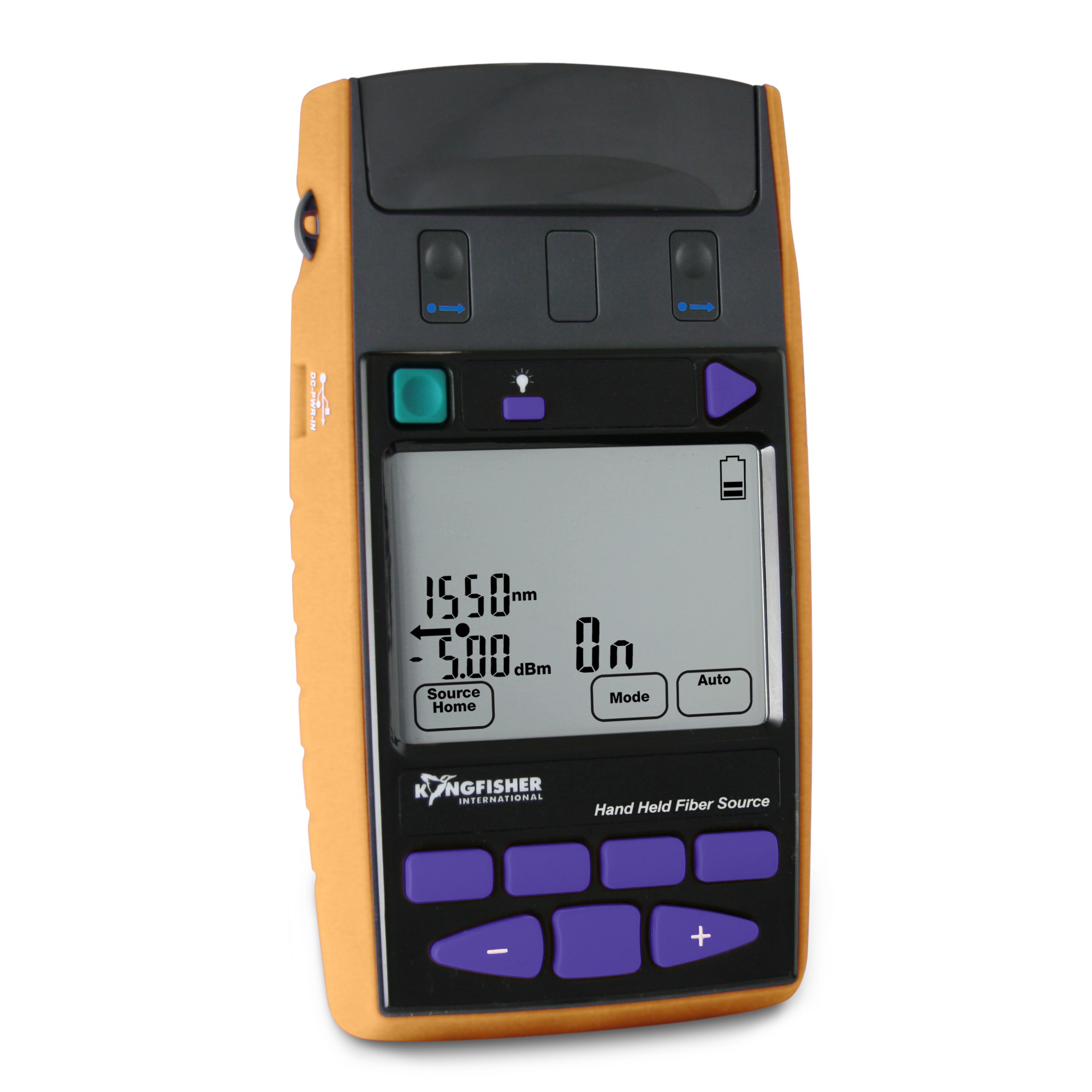

KI 2400/2800 Series - Hand Held Fiber Source


The KI2400 / 2800 Hand Held Fiber Sources are used with optical power meters for testing optical loss on single mode and multimode fibers. A Multi-Fiber tone feature makes for handy continuity / polarity testing and fault finding, also for use with clip-on traffic identifiers.

The KI2800 source provides excellent general test capability. Alternatively, the KI2400 premium source is unique in the industry, with zero warm up, ultrahigh stability, and is unaffected by varying back reflection.

All emitters feature excellent repeatability and stability. Re-connection repeatability is < 0.1 dB, resulting in exceptional test accuracy.

This instrument meets the general requirements of MIL PRF 28800F class 2. The large display provides the user with an easy view of instrument status and test results.

Practical interchangeable optical connectors are easily changed, and are protected with a captive dust cover / tilt bail. Metal free adaptors help avoid contamination of connectors in high power systems.

AA alkaline batteries have long life, and the micro USB power input ensures high availability. or use rechargeable batteries with built-in charging.

When used with a Kingfisher Autotest compatible power meter or loss test set, automatic l identification is achieved, and the nominal source power is displayed on the power meter.

Up to 6 LED / laser sources can be specified, making this a versatile test source for mixed multimode / single mode fiber testing.

Laser options compliant with CWDM standards cover typical cable qualification for O, E, S, C, & L bands, including the water absorption peak, 1625 nm.

Multimode LED sources are Encircled Flux (EF) standards compliant, to provide the most consistent and reliable testing results.

The unique VisiTester option mixes a laser VFL with Autotest, so at the power meter end, the active test fiber winks, making it obvious to the user. It also extends practical fault finding options.

Please refer to other brochures for our convenient FiberTester kits, comprising groups of instruments and common accessories supplied in a protective field carry case.



OPTICAL Specifications




1310/1550 nm Laser

CWDM1 Laser

1625 nm Laser

650 nm VisiTester2

850 / 1300 nm LED

1310/1550 nm LED

470 / 520 nm LED

Comments

KI 2800 series

Short term stability (dB)

0.04

0.06

0.06

N/A

0.01

N/A

0.01

For 15 min, typical ± D 2°C, after warm up, ORL < -25 dB

Stability over temp (dB)

0.6

0.6

0.6

N/A

0.35

N/A

0.35

Typical

Premium zero warm up & ultra-stable KI 2400 series3

Short term stability (dB)

0.03

0.05

0.05

N/A

0.01

0.03

N/A

For 15 min, max, ± D 3°C no warm- up

Stability over temp (dB)

0.2

0.2

0.2

N/A

0.35

0.2

N/A

Max

Common for both KI 2400 & KI 2800 series

l initial tolerance (nm)

20

6.5

20

5

NA

20

15

At 25 °C

l width, nm

3

< 1

3

3

NA

35 / 48

25

FWHM, typical

l nm/°C

0.4

0.1

0.4

0.1

0.4

0.4

N/A

Typical

Mode Controlled Source

N/A

N/A

N/A

N/A

Mode controlled

N/A

N/A

50/125 compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178.

Reconnection repeatability4 dB

0.1

0.1

0.1

0.1

0.05

0.1

N/A

95 % confidence

Modulation

270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tones, 2 Hz blink for VisiTester


Output power level

Refer to orDERING INFORMATION section for output power level of specific model

Laser: adjustable over 7 dB in 0.01 dB steps, LED: fixed

Output power accuracy

± 1 dB (for Laser/eLED @ SMF, Multimode LED @ 62.5 µm, POF @ 1 mm)




Class 1 Laser / LED infra-red device. Compliant with IEC60825-1.



Note 1: CWDM laser wavelengths: 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 nm



Note 2: VisiTester option:



Note 3: Premium Zero Warm Up & Ultra Stable KI2400 Series



Note 4: Reconnection Repeatability:



GENERAL SPECIFICATIONS



Parameters

Value

Parameters

Value

Battery life

Laser/LED source: 90/80 hours in Autotest, typical

Dust cap

Captive, functions as tilt bail when slid open

Size

190 x 105 x 35 mm (7.5 x 4.1 x 1.4”)

Operating / Storage

-15 to 55 °C / -25 to 70 °C

Weight

420 gm (0.9 lb.). Shipping 1.5 Kg (3.3 lb.)

Relative humidity

0 ~ 95 %

LCD size

74 x 55 mm / 2.9 x 2.2”

Calibration cycle

3 years

Case

Polycarbonate / rubber edges & corners, moisture resistance, 1-meter drop tested

Power

2 Alkaline AA cells or 2 x NiMH AA cells, user selectable charging; Ext power input via micro USB; Selectable auto-off, low battery indicator, backlit display










ORDERING INFORMATION

Please enquire for non-listed specifications such as:  Wavelengths, Power levels, PC / APC Connectors

Description

Power (dBm) @ Fiber Type(mm)


Ports

P/N


Laser

LED

VisiTester




SMF

SMF

50m

62.5m

1 mm

SMF



KI 2800 series



Instrument, Source 850-1300 nm LED

-

-32

-22.5

-20

-

-

1

KI 2803

Instrument, Source 850-1300 nm LED VisiTester

-

-35

-25.5

-23

-

+2

1

KI 28603

Instrument, Source 470-520 nm LED

-

-

-

-

-6

-

2

KI 2806

Instrument, Source 1310-1550 nm Laser

0

-

-

-

-

-

1

KI 2822

Instrument, Source 1310-1550 nm Laser VisiTester

-3

-

-

-

-

+2

1

KI 28622

Instrument, Source 850-1300 nm LED, 1310-1550 nm Laser

0

-32

-22.5

-20

-

-

2

KI 2824

Instrument, Source 850-1300 nm LED, 1310-1550 nm Laser APC

0

-32

-22.5

-20

-

-

2

KI 2824-APC

Instrument, Source 850-1300 nm LED, 1310-1550 nm Laser VisiTester

-3

-32

-22.5

-20

-

+2

2

KI 28624

Instrument, Source 850-1300 nm LED, 1310-1550 nm Laser VisiTester APC

-3

-32

-22.5

-20

-

+2

2

KI 28624-APC

Instrument, Source 850-1300 nm LED, 1310-1550-1625 nm Laser

-3

-32

-22.5

-20


+2

2

KI 2825-APC

Instrument, Source 850-1300 LED VisiTester, 1310-1550 Laser VisiTester

-3

-35

-25.5

-23


+2

2

KI 28634

Instrument, Source 1310-1550-1625 nm Laser APC

-3

-

-

-


-

1

KI 28010-APC

Instrument, Source 1310-1550-1625 nm Laser VisiTester APC

-7

-

-

-


+2

1

KI 28610-APC

Instrument, Source 1310-1490-1550-1625 nm Laser APC

-3

-

-

-


-

1

KI 28016-APC

Zero warm up & ultra-stable light sources, KI 2400 series

Instrument, Source 1310-1550 nm Ultra Stable eLED

-

-20

-

-


-

1

KI 2419

Instrument, Source 1310-1550 nm Ultra Stable Laser

-4

-

-

-


-

1

KI 2422

Instrument, Source 1310-1550-1625 nm Ultra Stable Laser APC

-7

-

-

-


-

1

KI 24010-APC





 STANDARD ACCESSORIES



DescriptionQuantitySC connector adaptor (OPT046)1 per portOperation manualQA certificateCalibration certificates11 1 setCarry PouchCarry strap50 & 62.5 µm fiber mandrel wrap set for Multimode sources (OPT701)111USB-A to USB-micro type cable1



This instrument is supplied with metal-free sleeve interchangeable optical connector adaptors. The ferrule type is fixed and customer specified as either PC or APC. Green is associated with APC. You can order any number of connector adaptors.





OPTIONAL ACCESSORIES



Description

Part number

Carry Case for 2 Instruments

OPT153

Carry Case includes Cletop-style cleaner & Cleaning Sticks

OPT154B







OPTIONAL INTERCHANGEABLE CONNECTOR ADAPTORS


Description

Part number

Description

Part number

Option, Hybrid Adaptor, Ceramic Sleeve, SC/FC

OPT051

Option, Hybrid Adaptor, Ceramic Sleeve, SC/MU

OPT080

Option, Hybrid Adaptor, Ceramic Sleeve, SC/ST

OPT040

Option, Hybrid Adaptor, Ceramic Sleeve, SC/LSA-DIN47256

OPT071

Option, Hybrid Adaptor, Ceramic Sleeve, SC/D4

OPT055

Option, Hybrid Adaptor, Metal Sleeve, SC/SMA 905/906

OPT082

Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000

OPT060

Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 1.25 mm

OPT084

Option, Hybrid Adaptor, Ceramic Sleeve, SC/E2000 Green

OPT060G

Option, Hybrid Adaptor, Ceramic Sleeve, SC/F3000 or LC Simplex, plastic body

OPT072

Option, Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body

OPT076

Option, Hybrid Adaptor, Ceramic Sleeve, SC/Universal 2.5 mm

OPT081

Option, Hybrid Adaptor, SC/POF multi

OPT0775





History Record

Revision

Date

Editor

Change Description

19

27/02/2017

TO Ng

1.  Added adaptor, OPT077 (Option, Hybrid Adaptor, SC/POF multi) inn OPTIONAL INTERCHANGEABLE CONNECTOR ADAPTOR table.
