Ceyear 6422 OTDR

发布时间:2019-02-27人气:156

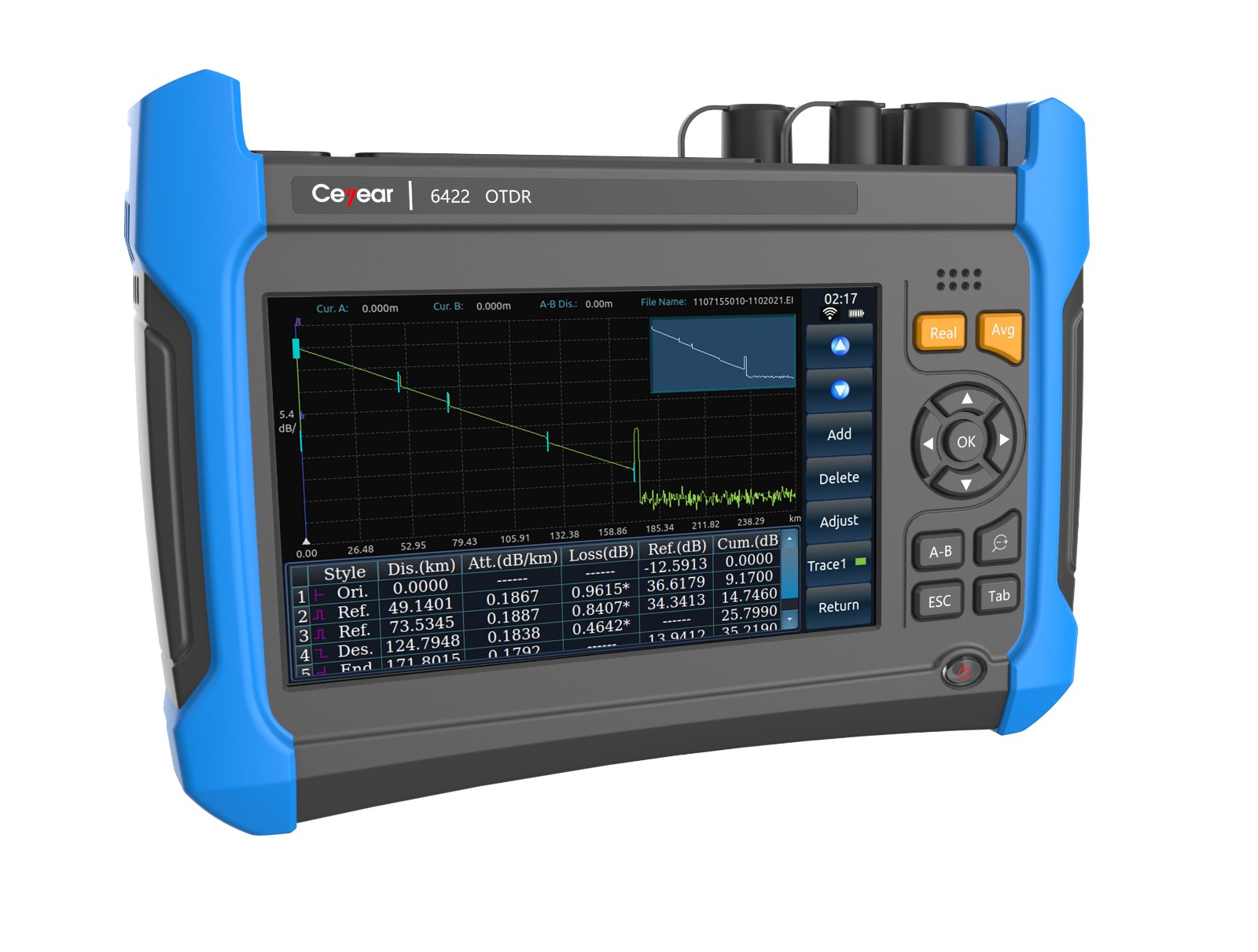

6422 OTDR


PRODUCT OVERVIEW

6422 OTDR can used to test single-mode wavelengths of 1310nm, 1550nm, 1490nm, 1625nm and 1650nm, multi-mode wavelengths of 850nm and 1300nm as well as customized special wavelengths. It provides multiple optional modules, such as single wavelength, multi-wavelength and online test. With the maximum dynamic range of up to 50dB, the device can be used for remote multi-branch communication network test. It's designed with a minimum event dead zone of 0.5m which makes the near connection easy to be supervised, and the lowest sampling resolution of 2.5cm which enables it to locate the event point accurately. Additionally, the device is also designed with multiple convenient functional options, such as stable light source, optical power meter, visible red light source and fiber end face inspection tester.

6422 OTDR is designed with an operating temperature and a storage temperature of -10℃~50℃ and -40℃~70℃ respectively to meet both EMC requirements as well as vibration and shock test requirements, a MTBF(θ0) of 6000h or above to ensure a high reliability, and a 75W built-in Li battery to ensure an endurance for continuous measurement in the wild field.


FUNCTIONS & FEATURES

l  A maximum dynamic range of 50dB, and 256k data sampling points;

l  Online test of PON network;

l  Integrated mono-mode and multi-mode test;

l  Automatic monitoring of optical communication signals;

l  File formats of Bell core GR196 and SR-4731 supported.


TYPICAL APPLICATIONS

Rapid automatic test

Due to the automatic test function of 6422, it's not necessary for the user to know more about its operation. Connect the optical fiber and press the [Test] button. Then, the device will set the optimum test conditions automatically, and finally output accurate test results, such as the test curve and the list of events.


Unique PON network test

As an ideal tester of ODN and FTTx, 6422 is provided a unique built-in PON network test function, can penetrate an optical splitter of up to 1:128, and can be used to test each branch of the PON network accurately.

Automatic monitoring and alarm of incoming optical signals

When the OTDR is testing the optical fiber line, the optical communication signal in the optical fiber, if any, will lead to inaccurate test results and even unrecoverable damages to the detectors in the device. 6422 can monitor the optical communication signal in the optical fiber under test automatically. As long as the optical fiber under test is connected to the optical interface of 6422, the device can automatically sense and monitor whether there is optical communication signal in it. Once an optical signal is monitored, it will prompt an alarm in time, so as to provide the quickest and the most timely protection for the device.

Typical Applications

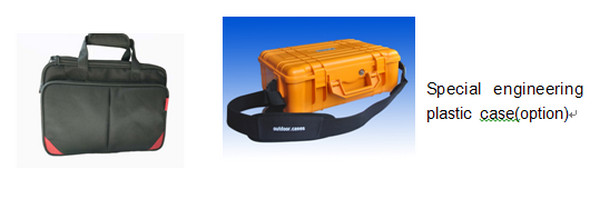

l  Packing case:

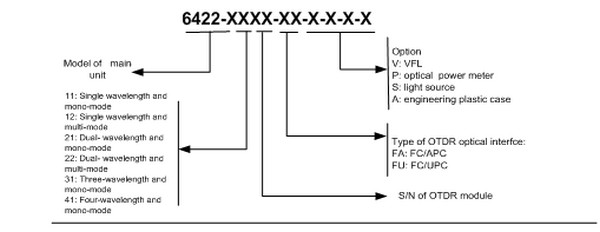

l  Information for choosing:




Note: Due to the design improvement requirement, the contents mentioned above can be modified without notice.

Technical Specifications

Maximum   dynamic range

See the “Technical   specifications for each standard module of 6422 OTDR” for more   information.

Ranging   accuracy

±(0.75 + sample interval + 0.0025% × range)(excluding the   refractivity placement error) (m)

Ranging   resolution

0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m

Test range

0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256 and 512km   (mono-mode);

0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km (850nm multi-mode)

Testing PW

3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480ns

3, 5, 10, 30, 80, 160, 320, 640 and 1280ns(850nm multi-mode)

Maximum   number of sampling points

256k

Linearity

0.03dB/dB

Loss   resolution

0.001dB

Refractivity   setting range

1.00000 ~   1.99999(step: 0.00001)

Range unit

km, m, thousand feet, feet

Display

800×480, 7-inch TFT color LCD (a capacitive touch screen in   the  standard configuration, and a   resistive touch screen optional)

Optical   output interface

FC/UPC (standard   configuration, with LC/UPC, SC/UPC and   ST/UPC optional)

Interface   language

Simplified Chinese, English, Russian and Korean available   (contact the office for other language support)

External   interfaces

USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD

Power supply

AC/DC adapter: AC100V~240V, 50/60Hz   and 1.5A

DC: 17V±3V(2A)

Internal Li battery: 11.1V, 6800mAh, battery operating time: 8h

Maximum   power consumption

10W

Dimensions

252mm(W)×180mm (H)×55mm (D)

Weight

About 1.8kg

Environmental adaptability

Operating temperature: -10~+50 (battery charging: 5~40)

Storage temperature: -40~+70 (battery: -20~60)

RH: 5% ~95%, no condensation

l  VFL (optional)

Operating wavelength: 650nm±20nm

Output power: 2mW (typical)

Operating mode: CW, 1Hz and 2Hz

l  Optical power meter (optional)

Wavelength range: 1200nm~1650nm

Power range: -60dBm~0dBm

Uncertainty: ±5%(-25dBm, CW)

l  Stable light source (optional)

Operating wavelength: the same as OTDR

Output power: ≥-5dBm

Operating mode: CW, 270Hz, 1kHz and 2kHz



l  Technical specifications for each standard module of 6422 OTDR1

Module number

Operating wavelength

Laser

wave length

Dynamic   range2

(dB)

Event dead   zone3

(m)

ATT dead   zone4

(m)

6422–1105

Mono-mode   1625nm (built-in filter)

Single-          wavelength

36

0.5

3

6422–1106

Mono-mode   1650nm (built-in filter)

36

6422–1201

Multi-mode   850nm

24

0.7

5

6422–1202

Multi-mode   1300nm

36

6422–2101

Mono-mode   1310/1550nm

Dual- wavelength

37 / 35

0.5

3

6422–2102

Mono-mode 1310/1550nm

42 / 40

6422–2103

Mono-mode 1310/1550nm

45 / 42

6422–2105

Mono-mode 1550/1625nm (built-in filter)

36 / 36

6422–2107

Mono-mode 1550 /1650nm (built-in filter)

36 / 36

6422–2109

Mono-mode 1310/1550nm

50 / 50

6422–2201

Multi-mode 850nm/1300nm

26/34

0.7

5

6422–3101

Mono-mode 1310/1490/1550nm

Three- wavelength

37/35/35

0.5

3

6422–3102

Mono-mode 1310/1550/1625nm(built-in filter)

37/35/35

6422–3103

Mono-mode 1310/1550/1625nm(built-in filter)

45/42/42

6422–3104

Mono-mode 1310/1550 /1650 nm(built-in filter)

37/35/35

6422–3105

Mono-mode 1310/1550/1650nm(built-in filter)

45/42/42

6422–4101

Mono-mode 1310/1490/1550/1625nm(built-in filter)

Four- wavelength

45/42/42/42

0.5

3

6422–4105

Mono-mode 1310/1490/1550/1650nm(built-in filter)

45/42/42/42

6422-4001

Mono-mode 1310/1550nm, multi-mode 850/1300nm

40/38/26/34

0.7

5

Notes: 1. One must and only one can be chosen for the standard module.

2. An ambient temperature of 23±5, the maximum test PW, over 500 times averagely, and a SNR of 1.

3. A range of 1.6km or smaller, a PW of 3ns, a fiber end face reflection loss of 40dB or above, and a typical value.

4. A range of 1.6km or smaller, a PW of 5ns or smaller, a fiber end face reflection loss of 50dB or above, and a typical              value.

Hardware Options

No.NameDescription
6422-001USBUSB
6422-002SD cardSD card
6422-003USB data cableUSB data cable
6422-004Spare battery pack6417LB-1192
6422-005LC, SC and ST adaptersLC, SC and ST adaption
6422-006Mono-mode optical fiber adaption jumperFC/UPC adapted to FC/APC
6422-007Mono-mode optical fiber adaption jumperFC/UPC adapted to SC/UPC
6422-008Mono-mode optical fiber adaption jumperFC/UPC adapted to LC/UPC
6422-009Special engineering plastic case of OTDRSpecial engineering plastic case (including the strap)

Standard Package

No.NameDescription
1Power line assemblyPower line and power adapter: an input voltage of 100~240V, 50~60Hz, an output voltage and an output current of 19V and 3.42A respectively at 2.0A
2User manual-
3Product certificate of conformity-
4CDIncluding simulation analysis software
5Special portable soft bag of OTDR-
6Special strap of OTDR-
