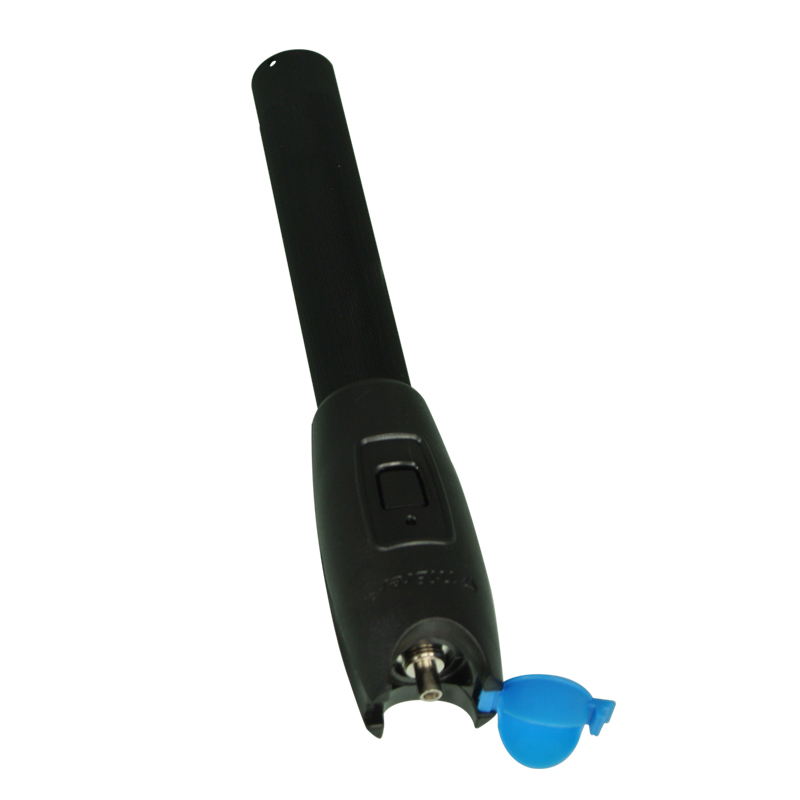

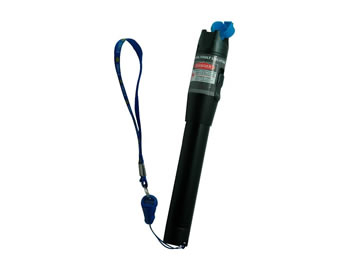

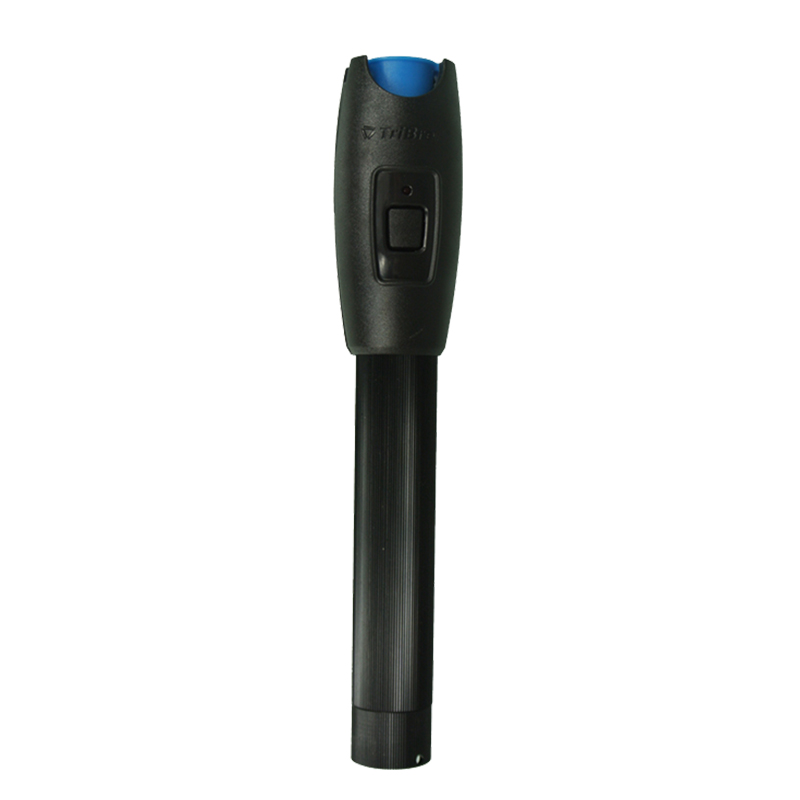

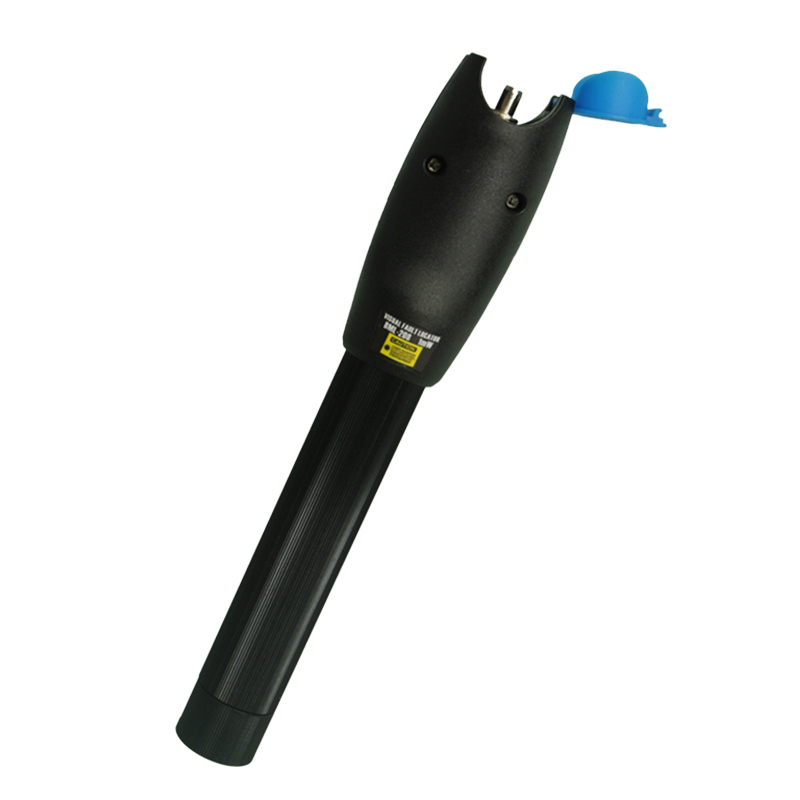

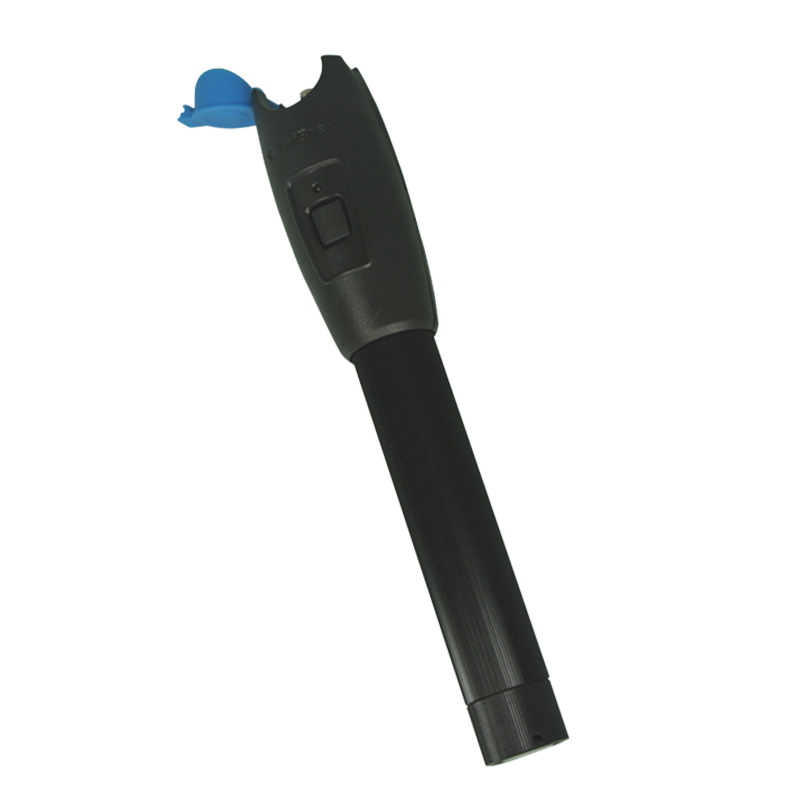

Pen Type Visual Fault Locator BML-208

发布时间:2019-02-27人气:95

Bright red laser at 650nm

Pulsed and CW operation

Standard AA alkaline batteries

Fast locate the broken point

Rugged and waterproof design

2.5mm universal connector

BML-208

BML-208-1

BML-208-10BML-208-15BML-208-20BML-208-25BML-208-30

Output Power*

> 1mW

> 10mW> 15mW> 20mW> 25mW> 30mW

Dynamic Distance**

3~5 km

8~10 km> 10km> 10km> 10km> 10km

Wavelength

650nm ± 20nm

Operation Mode

Pulsed(2Hz) and CW

Connector

2.5mm UPP(or customize 1.25mm UPP)

Size(H*W*D)

160mm(L) * 30mm(D)

Weight

70g


*     Tested by FOD1205H 650nm optical power meter

**   Human eyes Min. sensitivity -120dBm, and 10dB/km loss of 650nm in fiber
